Mac Studio / Mac mini vs NVIDIA GPUs for Local LLMs

Apple's Mac Studio and Mac Mini have become the default recommendation for running local LLMs. YouTube videos with millions of views show creators loading massive models onto Apple Silicon machines and calling them affordable AI workstations. The pitch is simple. Huge unified memory, quiet operation, compact form factor. What's not to like?

Plenty, once you look past the capacity numbers.

A Mac Mini M4 Pro with 64GB or a Mac Studio M4 Max with 128GB can absolutely load impressive models. The Mac Studio M3 Ultra with 256GB of unified memory can fit a quantized 405B parameter model in one piece. But loading a model and running it fast are two very different things. These machines generate tokens at a fraction of the speed that NVIDIA GPUs deliver, and the reason comes down to one spec that most buyers overlook. Memory bandwidth.

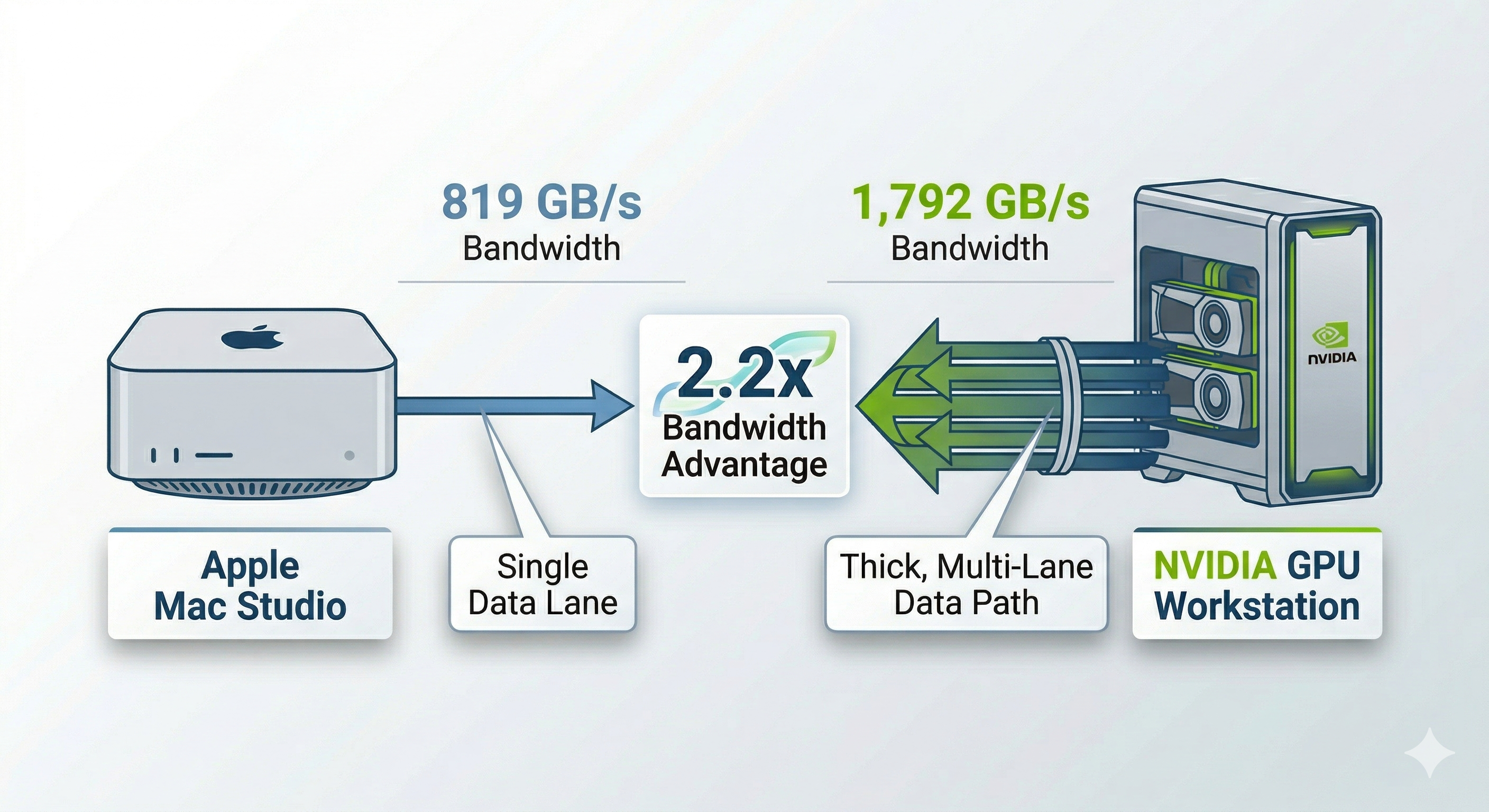

Mac Studio vs NVIDIA GPU workstation. The bandwidth gap tells the real story.

Dave2D's Mac Studio video is a good example. Watch him run DeepSeek R1 671B on a maxed-out M3 Ultra and get 17-18 tokens per second. Sounds usable, right? Until you realize that an NVIDIA RTX 5090, with a fraction of the memory capacity, delivers over 200 tokens per second on models that fit its 32GB of VRAM. The difference isn't capacity. It's bandwidth. And the gap only gets worse as you move down the Apple Silicon lineup. The Mac Mini M4 Pro tops out at 273 GB/s. Even the M4 Max only hits 546 GB/s.

Tokens per second is a function of memory bandwidth divided by model size. Not memory capacity. A Mac Mini reads through a model at 273 GB/s. A Mac Studio M3 Ultra reads at 819 GB/s. An NVIDIA GPU reads at 1,792 GB/s. The math doesn't care about marketing.

Why Bandwidth Beats Capacity for LLM Inference

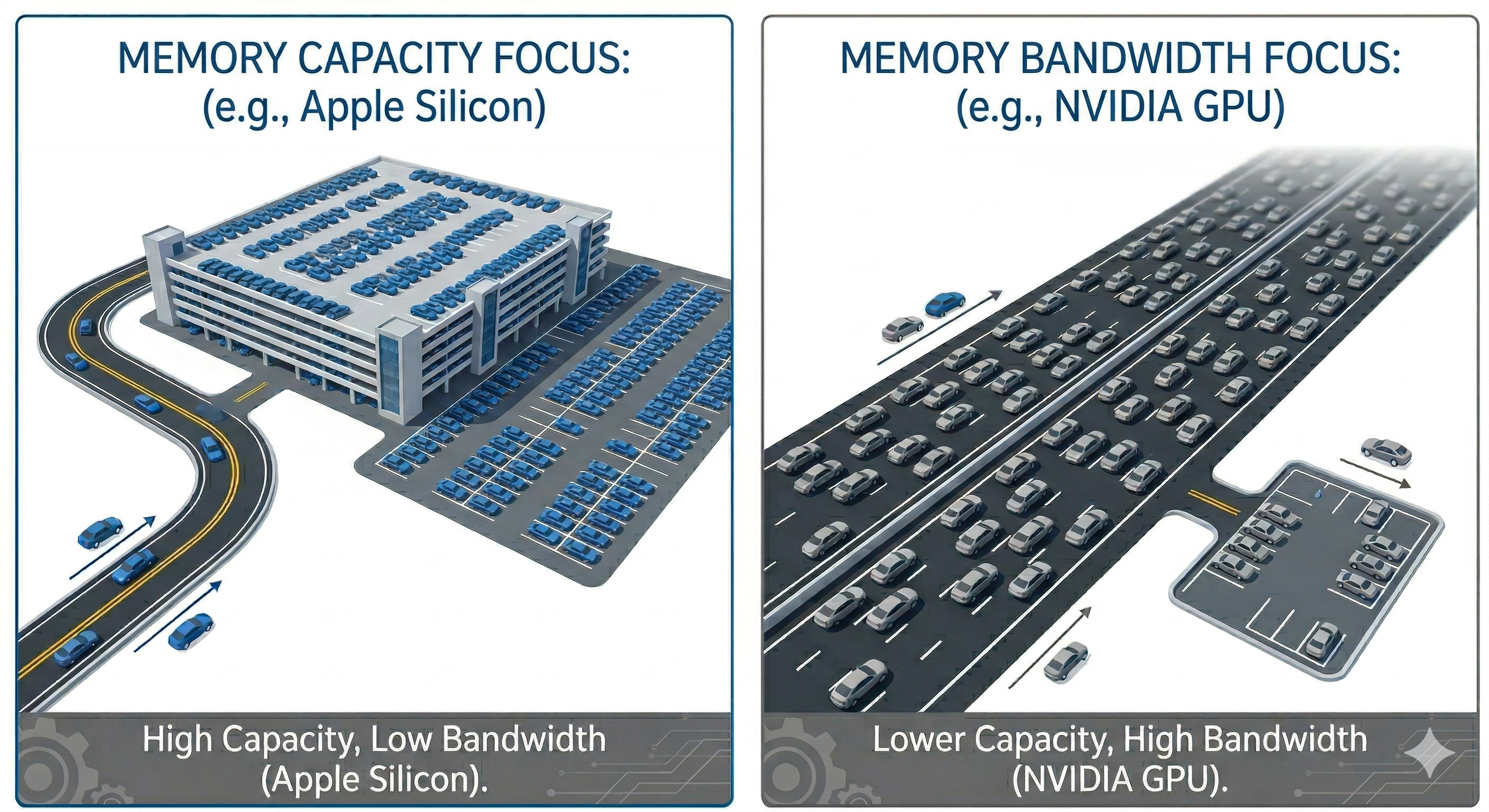

Think of it like a highway. Memory capacity is the parking lot at the end. But memory bandwidth is the highway feeding into it. A two-lane road can only move so many cars per second, no matter how big the parking lot is. A wider highway moves more traffic, period.

LLM token generation works the same way. Every time the model generates a single token, it needs to read the entire model's weights from memory. That's the bottleneck. The formula is straightforward.

Tokens per second = Memory bandwidth / Model size (in bytes)

Bandwidth is the highway width. Capacity is the parking lot. More lanes move more tokens.

This isn't a made-up heuristic. It's academically validated. A 2024 academic paper (arXiv 2402.16363) confirmed that LLM inference is fundamentally memory-bandwidth-bound, and that this formula predicts real-world performance within a measurable range. In practice, actual speeds land at about 50-85% of the theoretical max. KV cache overhead, quantization, and framework scheduling eat the rest.

Let's run a quick worked example. The M4 Max delivers 546 GB/s of memory bandwidth. A Llama 3.3 70B model quantized to Q4_K_M weighs about 42.5 GB. Theoretical maximum is 546 / 42.5 = roughly 12.8 tokens per second. Apply a realistic 65% efficiency factor and you get about 8.3 t/s. Real-world benchmarks on comparable configs land between 8-11 t/s. The math holds.

That 65% efficiency factor is the number we'll use throughout this article. It accounts for the overhead that every platform incurs, whether Apple Silicon or NVIDIA. The formula gives you a reliable way to predict performance on any hardware, for any model size. No marketing spin required.

The Hardware Showdown. Apple Silicon vs NVIDIA GPUs

Numbers talk. Let's put every relevant configuration side by side and see what the specs actually say.

Bandwidth and Compute Comparison Table

Hardware	Memory / VRAM	Bandwidth	FP16 Tensor TFLOPS (non-sparse)
Apple M4 Pro (Mac Mini)	Up to 64 GB unified	273 GB/s	16-core Neural Engine
Apple M4 Max (40-core GPU)	Up to 128 GB unified	546 GB/s	16-core Neural Engine
Apple M5 Max (40-core GPU)*	Up to 128 GB unified	614 GB/s	TBD
Apple M3 Ultra	Up to 256 GB unified	819 GB/s	32-core Neural Engine
NVIDIA RTX 5090	32 GB GDDR7	1,792 GB/s	~209
NVIDIA RTX PRO 5000 (48 GB)	48 GB GDDR7 ECC	1,344 GB/s	~141
NVIDIA RTX PRO 5000 (72 GB)	72 GB GDDR7 ECC	1,344 GB/s	~141
NVIDIA RTX PRO 6000	96 GB GDDR7 ECC	1,792 GB/s	~250

*M5 Max launched March 2026 in MacBook Pro only. Mac Studio with M5 Max arrives at WWDC June 2026.

Apple skipped the M4 Ultra entirely because the M4 Max die doesn't have an UltraFusion connector. That means the M3 Ultra, discontinued in its 512GB configuration, remains Apple's highest-bandwidth option for local LLM inference. Even a rumored M5 Ultra, expected to roughly double the M5 Max to around 1,200 GB/s, would still fall short of a single RTX 5090 at 1,792 GB/s.

On the NVIDIA side, the Blackwell architecture supports NVLink 5.0 at 1.8 TB/s per GPU, but NVIDIA deliberately removed the NVLink connector from workstation and consumer cards. The RTX PRO 6000 and RTX 5090 communicate over PCIe Gen 5 only. NVLink 5.0 is exclusive to data-center GPUs like the B200 and B300. NVLink 6.0, running at 3.6 TB/s, was announced for the Vera Rubin platform arriving in the second half of 2026. That's data-center only as well.

Reading the Table. What the Numbers Actually Mean

If you're not used to thinking in GB/s, here's the translation. A Mac Mini M4 Pro delivers 273 GB/s. A Mac Studio M4 Max delivers 546 GB/s. A single RTX 5090 delivers 1,792 GB/s, which is 3.3x the M4 Max and 6.6x the Mac Mini. Put two RTX 5090 cards in a workstation and you're looking at 3,584 GB/s combined. That's 4.4x what the M3 Ultra offers, the most powerful Apple Silicon chip currently available for desktop use.

The compute gap is even more dramatic. The RTX 5090 delivers roughly 209 TFLOPS of FP16 tensor performance through dedicated Tensor Cores. Apple doesn't publish comparable TFLOPS figures for its Neural Engine, but the architectural difference tells the story. NVIDIA Tensor Cores are purpose-built for matrix math. For workloads that need both bandwidth and compute, like fine-tuning or batch inference, NVIDIA cards are in a different league entirely.

Now, Apple's advantage is real in one specific area. Unified memory gives you a single large memory pool without splitting a model across GPUs. A 256GB M3 Ultra can hold a quantized 405B parameter model in one piece. Even a 64GB Mac Mini can load a quantized 30B model without any GPU splitting. An RTX 5090 with 32GB can't load a 70B Q4 model at all. You'd need two RTX PRO 6000 cards (192GB total) to match the M3 Ultra's capacity.

But here's the thing. For the models most people actually run day to day, like 8B, 27B, and 30B parameter models, a single NVIDIA GPU has more than enough VRAM and delivers dramatically faster inference. The capacity advantage only matters when you're pushing into 200B+ territory, and even then, the bandwidth math means Apple Silicon generates tokens at a fraction of the speed.

Predicted Tokens per Second Across Hardware and Models

Let's apply the bandwidth formula across every hardware configuration and model size. All predictions use a 65% efficiency factor, which matches real-world benchmarks consistently. Model sizes are Q4_K_M quantization, verified against HuggingFace and Ollama repositories as of April 2026.

Model (Q4_K_M)	Size	M4 Pro Mac Mini (273 GB/s)	M4 Max (546 GB/s)	M3 Ultra (819 GB/s)	1x RTX 5090 (1,792 GB/s)	2x RTX 5090 (3,584 GB/s)	1x RTX PRO 6000 (1,792 GB/s)	2x RTX PRO 6000 (3,584 GB/s)
Llama 3.1 8B	~4.9 GB	~36 t/s	~72 t/s	~109 t/s	~238 t/s	~238 t/s**	~238 t/s	~238 t/s**
Gemma 3 27B	~16.5 GB	~11 t/s	~22 t/s	~32 t/s	~71 t/s	~141 t/s	~71 t/s	~141 t/s
Qwen3 30B-A3B (MoE)	~18.6 GB	~10 t/s	~19 t/s	~29 t/s	~63 t/s	~125 t/s	~63 t/s	~125 t/s
Llama 3.3 70B	~42.5 GB	~4 t/s*	~8 t/s	~13 t/s	Does not fit	~55 t/s	~27 t/s	~55 t/s
Qwen3 235B-A22B (MoE)	~142 GB	Does not fit	Does not fit	~4 t/s	Does not fit	Does not fit	Does not fit	~16 t/s
Llama 3.1 405B	~245 GB	Does not fit	Does not fit	~2 t/s	Does not fit	Does not fit	Does not fit	Does not fit
DeepSeek R1 671B (MoE)	~404 GB	Does not fit	Does not fit	Does not fit	Does not fit	Does not fit	Does not fit	Does not fit

Small models that fit entirely in a single GPU's VRAM don't benefit from a second GPU. The model runs on one card at full speed.

*Llama 70B Q4 (42.5 GB) technically fits in 64GB but leaves minimal headroom for the KV cache and OS. Expect shorter context windows and possible performance degradation on longer conversations.

A note on MoE models. Qwen3 30B-A3B, Qwen3 235B-A22B, and DeepSeek R1 671B are Mixture of Experts architectures. They only activate a fraction of their total parameters for each token. Qwen3 30B-A3B activates roughly 3 billion of its 30 billion parameters per inference step. That means the actual compute per token is far lower than the model's full size suggests. The full model still needs to fit in memory, but once loaded, MoE models punch well above their weight class in tokens per second compared to dense models of the same file size.

Let's sanity-check these predictions against real-world benchmarks. Alex Ziskind measured the M3 Ultra at approximately 41 t/s on Gemma 3 27B Q4. Our prediction for that configuration is 32 t/s. The real-world number is higher, likely because Ollama's Metal backend is well-optimized for this specific model and the M3 Ultra's Neural Engine contributes some acceleration beyond raw bandwidth. Hardware-corner.net measured the RTX 5090 at 185-213 t/s on 8B models. Our prediction of 238 t/s at 65% efficiency lands in the right ballpark. Framework overhead accounts for the gap.

The formula works. Not perfectly, because no simplified model captures every variable. But it gives you a reliable baseline for comparing platforms head to head, which is exactly what most hardware reviews skip.

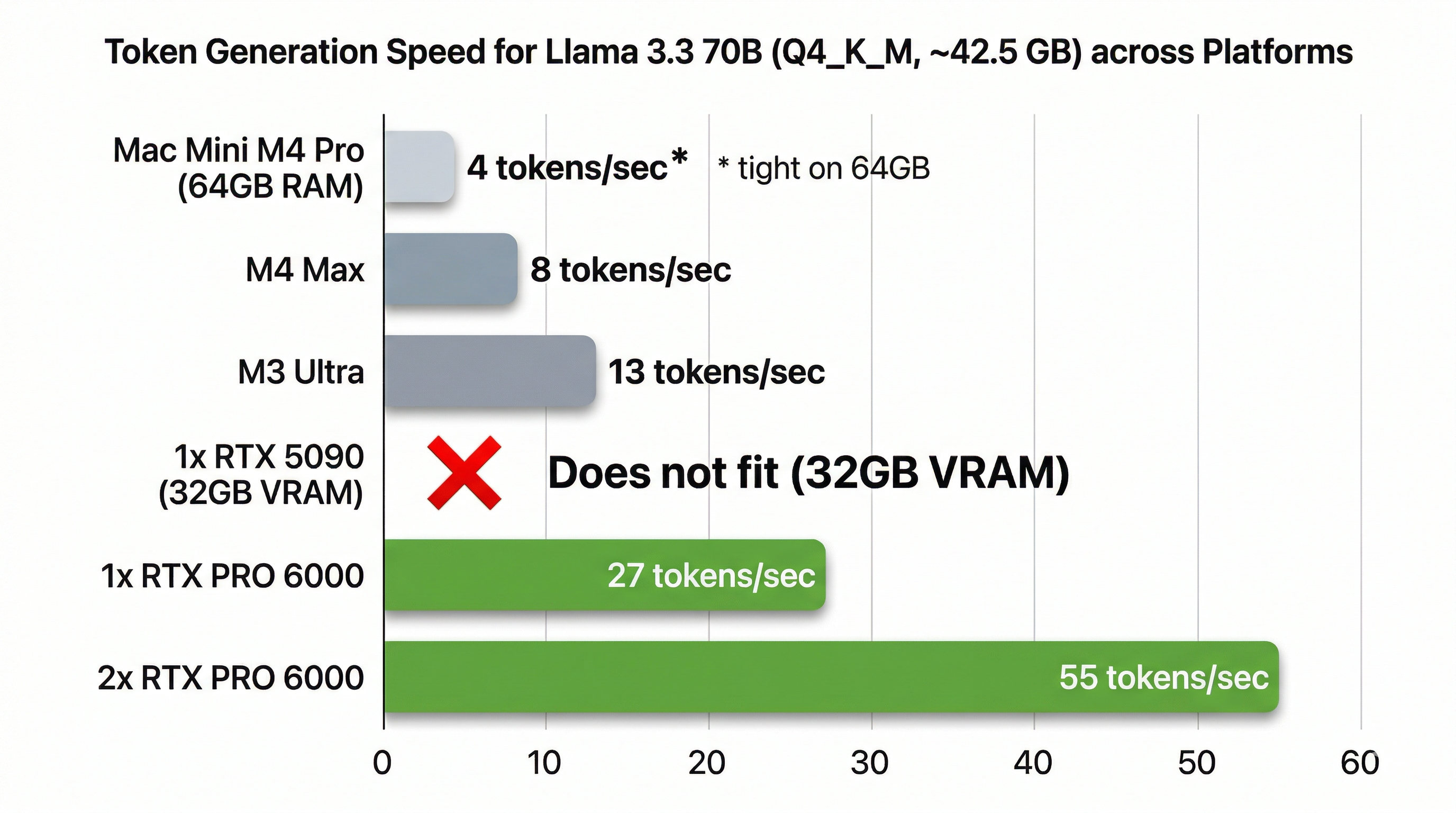

Llama 3.3 70B (Q4_K_M) token generation speed. M4 Max, M3 Ultra, and NVIDIA configurations at 65% efficiency

The Multi-User Problem. Where Mac Studio Falls Apart

Everything we've discussed so far assumes one person, running one model, generating one stream of tokens. That's the scenario YouTube reviewers test because it's the easiest to benchmark. But it's not how most teams actually use local LLMs.

The moment you add a second user, the performance picture changes dramatically.

Olares (formerly lattice.ai) published multi-user benchmarks in January 2026 running Qwen3 30B-A3B across different hardware configurations. The results are telling. A Mac Studio M3 Ultra delivered approximately 84 tokens per second with a single user. Solid performance. But at 8 concurrent users, it cratered to roughly 25 t/s. That's a 70% performance drop.

An NVIDIA GPU running the same model through vLLM started at 157 t/s for a single user and dropped to 81 t/s at 8 concurrent users. A 48% decline. Still a meaningful drop, but nothing like the cliff the Mac Studio falls off.

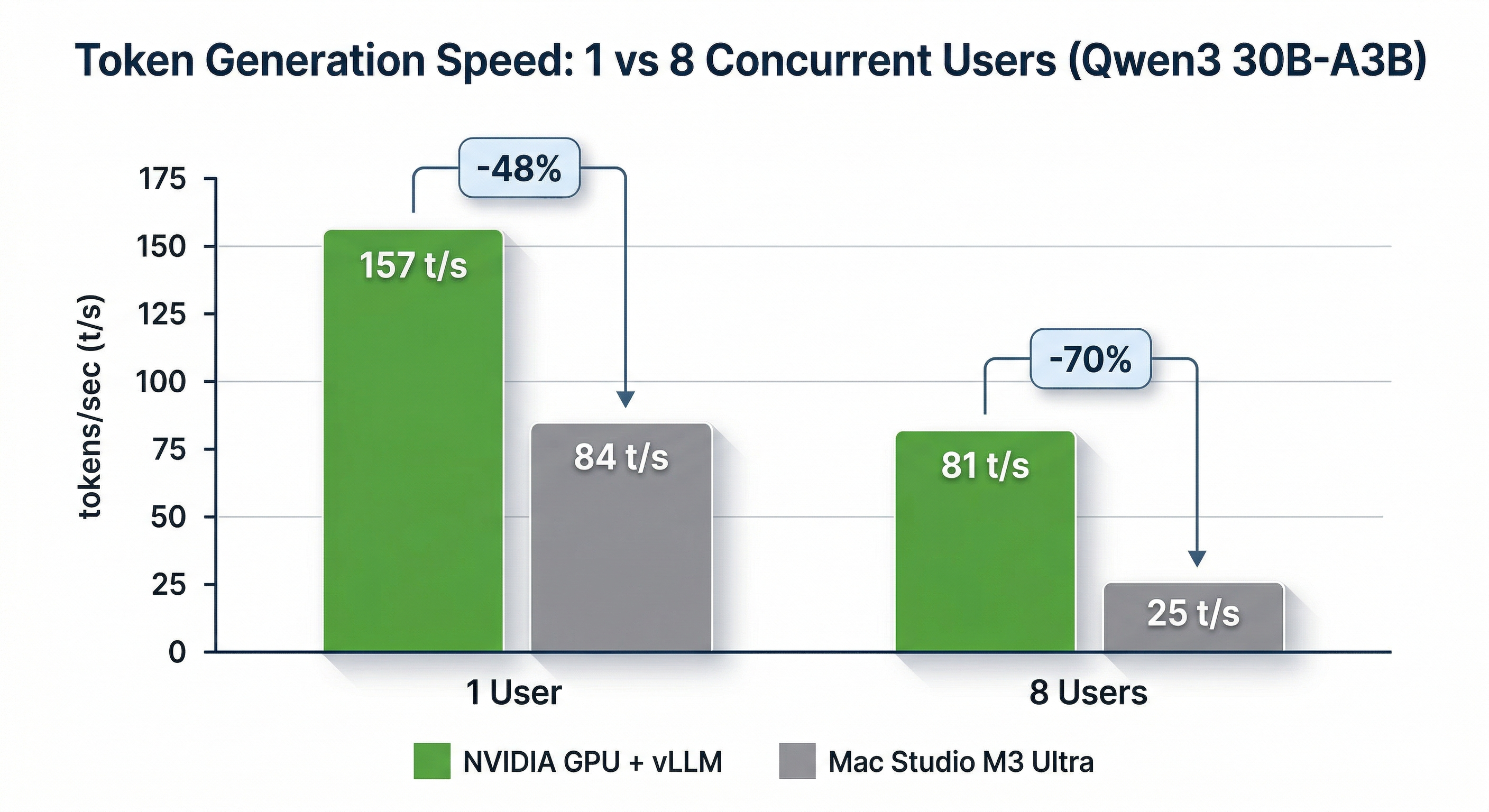

Token generation speed at 1 and 8 concurrent users on Qwen3 30B-A3B (Olares benchmarks, January 2026)

Why the dramatic difference? Apple's unified memory architecture is the culprit. That shared memory pool that makes it so convenient for loading large models also means the CPU, GPU, Neural Engine, and every other active process on the system all compete for the same bandwidth. When multiple inference requests hit simultaneously, they're all fighting over 819 GB/s of shared bandwidth. There's no dedicated inference pipeline.

NVIDIA GPUs dedicate their full VRAM bandwidth to inference. The GPU's 1,792 GB/s serves the model and nothing else. The CPU handles its own work through separate system memory. There's no contention. That architectural separation is why NVIDIA scales so much more gracefully under concurrent load.

NetworkChuck demonstrated this scaling problem from a different angle. His viral video shows a cluster of 5 Mac Studios linked together, creating what he calls an "AI supercomputer." But it also illustrates the fundamental issue. He needed 5 Mac Studios to achieve throughput that a single multi-GPU NVIDIA workstation handles with room to spare.

For solo users chatting with a model at their desk, multi-user scaling doesn't matter. But "single user" is changing fast. Agentic AI workflows, where coding assistants, research tools, and RAG pipelines all query the same local model, can generate 5-10 concurrent requests from one developer. You don't need a team to saturate a Mac Studio's shared bandwidth. You just need a Tuesday afternoon with your AI tools running.

The moment you're running inference for a small team, building an internal API, serving multiple concurrent requests, or running agentic workflows that fire parallel queries, Apple Silicon's shared bandwidth architecture becomes a serious bottleneck.

Software Ecosystem. CUDA vs Metal for AI

Hardware bandwidth is half the story. The software you can actually run on that hardware matters just as much.

The AI software ecosystem was built on CUDA. Here's where things stand today.

vLLM is the gold standard for production LLM serving. It's CUDA-native with deep optimization for NVIDIA GPUs. Apple Silicon support arrived in early 2026 through the vllm-metal project, but it's limited to text-only inference with no vision model support and no advanced scheduling features. It works, but it's a first-generation port.

TensorRT-LLM, NVIDIA's own inference optimization engine, remains CUDA-only with no Metal path. If your workflow depends on TensorRT-LLM's quantization and optimization features, Mac Mini and Mac Studio are not options.

PyTorch does support Apple Silicon through the MPS (Metal Performance Shaders) backend. It works for training and inference, but performance lags behind CUDA for many operations. The gap has narrowed since 2023, but CUDA still gets optimizations first and gets them deeper.

llama.cpp and Ollama offer the best Mac experience for local inference. These frameworks run well on Metal and are the reason those YouTube videos look so good. For single-user, single-model chat, they deliver a smooth experience on Apple Silicon.

Fine-tuning is where the gap becomes a wall. LoRA, QLoRA, and the major fine-tuning toolchains are CUDA-first. Some experimental Metal support exists, but production fine-tuning at any meaningful scale requires NVIDIA GPUs. Full stop.

Jeff Geerling's deep dive into RDMA-over-Thunderbolt-5 Mac Studio clusters shows what it takes to push Apple Silicon beyond single-machine inference. The benchmarks are methodical and the results are honest. Scaling Mac Studios is possible but adds enormous complexity compared to dropping multiple GPUs into a single NVIDIA workstation.

If you want to chat with a model locally using Ollama, the Mac Mini and Mac Studio work fine. If you need production inference serving, fine-tuning, batch processing, or multi-user API endpoints, you need CUDA. That means NVIDIA.

When Mac Mini and Mac Studio Actually Make Sense

Apple Silicon machines are genuinely good hardware that gets misrepresented as something they're not. Let's give credit where it's earned.

Quantized models are the sweet spot. Heavily quantized models (Q4 and below) are less sensitive to raw bandwidth because the data being read per token is smaller. A Llama 8B model quantized to Q4_K_M weighs about 4.9 GB. At that size, even the Mac Mini M4 Pro's 273 GB/s delivers roughly 36 tokens per second. That's a perfectly usable speed for chatting with a local model. Quantized versions of 27B and 30B models run at 10-11 t/s on the Mac Mini. That's a comfortable reading pace for interactive chat.

Mac Mini M4 Pro (64GB) is an affordable entry point for local LLM experimentation. It runs quantized models up to about 30B parameters, handles Ollama well, and sits silently on a desk drawing minimal power. For developers already in the macOS ecosystem who want to try local AI as a side workflow, it adds that capability without a second machine.

Mac Studio M4 Max (128GB) is the mid-range option. It doubles the Mac Mini's bandwidth to 546 GB/s and fits larger quantized models, including 70B Q4 models with room for a KV cache. Single-user inference on models in the 27B-70B range is where the Mac Studio performs best relative to its bandwidth constraints.

Mac Studio M3 Ultra (256GB) can hold quantized models up to roughly 200B parameters in one piece and deliver usable token speeds for personal exploration and prototyping. It does this silently, in a compact form factor, with no GPU fans spinning up.

Prototyping and experimentation is where all three machines shine. Testing prompt engineering, evaluating different models, building proof-of-concept applications. All of this works well on Apple Silicon when you're a single user iterating on ideas.

But the line is clear. If LLM inference is your primary workload, the bandwidth math we've walked through doesn't lie. Multi-user serving, production deployment, fine-tuning, or any workflow where tokens per second directly impacts your team's productivity. NVIDIA GPUs deliver 2-4x more tokens per second across comparable hardware tiers. That's not marketing. It's physics.

Recommended BIZON Workstations for Local LLM Inference

The bandwidth numbers make the case. Now let's translate that into actual hardware you can buy and deploy. BIZON builds GPU workstations purpose-built for AI inference, and every system ships with PyTorch, vLLM, CUDA, and Docker pre-installed. No spending your first two days fighting driver compatibility.

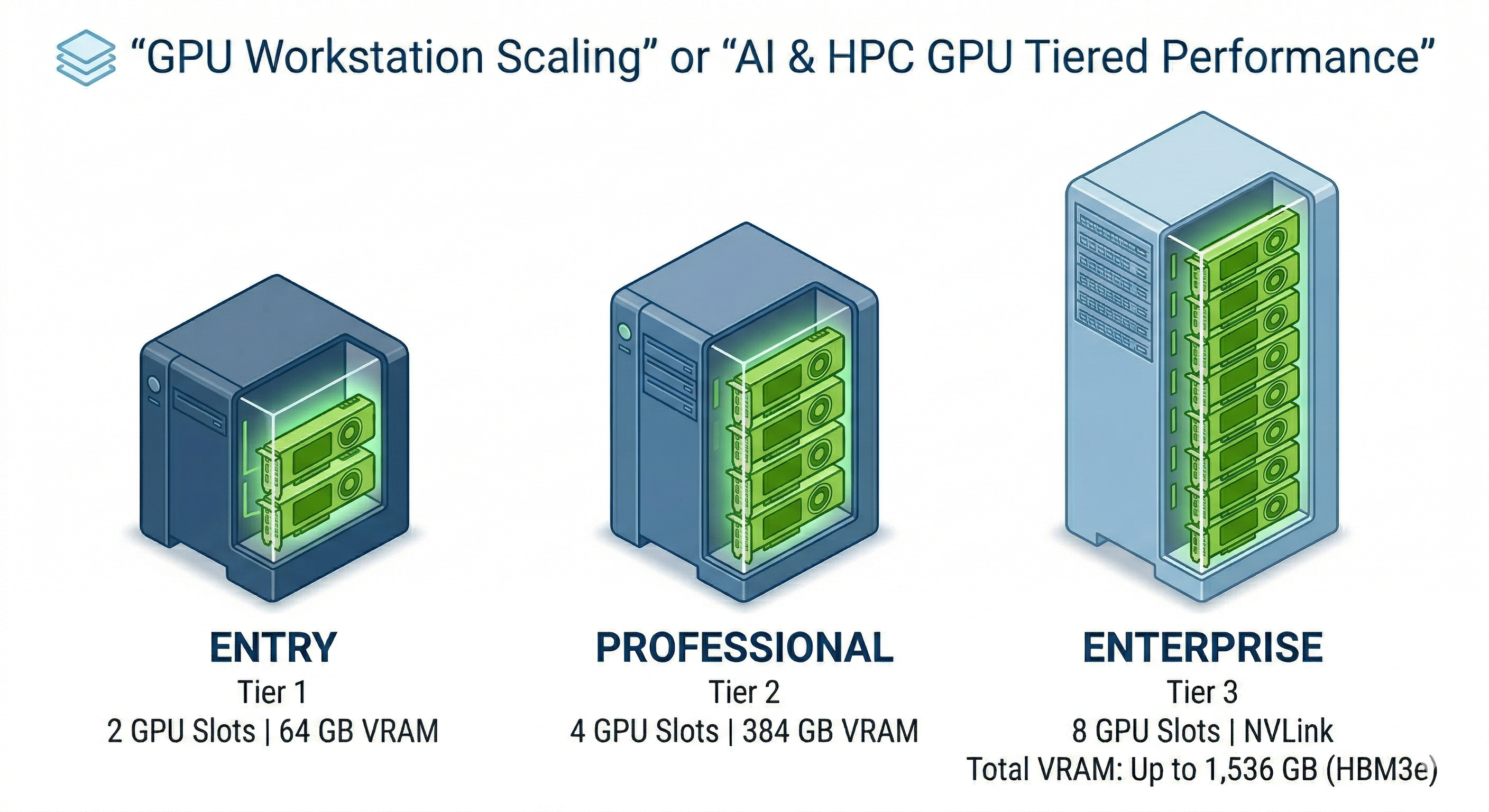

BIZON GPU workstation tiers for local LLM inference

We've organized recommendations into tiers based on workload complexity. Start with the tier that matches your current needs. Every BIZON system can be custom-configured, so you're not locked into a fixed SKU if your requirements fall between tiers.

Entry Level. Single-GPU Workstations

The BIZON X3000 and BIZON V3000 G4 with a single RTX 5090 (32GB GDDR7) are the most direct comparison to a Mac Studio. One GPU delivering 1,792 GB/s of dedicated bandwidth.

Who it's for. Individual researchers and developers running models up to 30B parameters. Llama 8B, Gemma 27B, and Qwen 30B-A3B all fit comfortably in 32GB of VRAM and run at speeds that no Mac Studio can touch. Our predictions show roughly 63-238 t/s depending on model size, compared to 19-72 t/s on an M4 Max for the same models. That's a 3x improvement on the workloads most individual users actually run.

If your workflow is primarily chatting with models under 30B parameters and you want the fastest possible single-user inference, this is where to start.

For teams or individuals who need to step up in VRAM without jumping to the professional tier, dual-GPU configurations offer a compelling middle ground.

Mid-Range. Dual-GPU Workstations

The BIZON X3000 and BIZON X5500 support 2x RTX 5090 (64GB total) or configurations with RTX PRO 5000 cards (up to 144GB total with 2x 72GB variants).

Who it's for. Teams running 70B parameter models at usable speeds, or individuals who need 48-72GB of VRAM for larger models and datasets. A 2x RTX 5090 configuration delivers 3,584 GB/s of combined memory bandwidth. That's over 4.4x what the M3 Ultra provides. On Llama 3.3 70B, our predictions show roughly 55 t/s from dual RTX 5090s compared to 13 t/s from the M3 Ultra.

The RTX PRO 5000 in its 72GB variant is particularly interesting for users who need more VRAM headroom without the cost of RTX PRO 6000 cards. Two of them give you 144GB of ECC VRAM at 2,688 GB/s combined bandwidth.

When your models or your user count outgrow dual-GPU configurations, the professional tier scales up with purpose-built multi-GPU chassis.

Professional. Quad-GPU Workstation

The BIZON X5500 with 4x RTX PRO 6000 Max-Q is our most recommended configuration for serious multi-GPU LLM work. That's 384GB of ECC VRAM with 7,168 GB/s of combined bandwidth in a single AMD Threadripper PRO workstation. The Max-Q variant matches the standard RTX PRO 6000's memory bandwidth in an optimized power envelope, which means identical inference speeds with lower power draw. That efficiency is what makes four of them practical in a single workstation chassis. Need the same configuration in a rack? The BIZON R5000 delivers the same Threadripper PRO platform and quad-GPU support in a 5U rackmount form factor.

Who it's for. Production inference serving, fine-tuning with LoRA/QLoRA, and teams that need to run 200B+ parameter models at genuinely usable speeds. Four RTX PRO 6000 cards can hold a quantized 235B MoE model entirely in VRAM and serve it to multiple users simultaneously through vLLM.

Every system in this tier comes with the full pre-installed software stack. PyTorch, vLLM, CUDA, Docker, and SLURM for multi-node job scheduling. BIZON's 3-year warranty and lifetime technical support mean you're not troubleshooting driver issues on your own.

For organizations whose inference demands go beyond workstation-class GPUs, data-center hardware offers another order of magnitude in bandwidth and interconnect speed.

Enterprise. Data Center Class

The BIZON G9000 and BIZON Z9000 G3 support H100 and H200 configurations. These data-center GPUs are where NVLink actually lives, enabling high-speed inter-GPU communication that PCIe-based workstation cards simply can't match. For B200 configurations, the BIZON X9000 G4 delivers 8x B200 SXM5 with 1.8 TB/s NVLink 5.0 per GPU.

Who it's for. Organizations running 405B+ models in production, multi-model serving across teams, and large-scale fine-tuning where HBM (High Bandwidth Memory) and NVLink interconnect eliminate the bottlenecks that consumer and professional GPUs hit. The X9000 G4's 8x B200 configuration delivers 1,536GB of HBM3 VRAM. The BIZON X9000 G5 takes it further with 8x B300 SXM and 2,304GB of HBM3e. That's enough to run DeepSeek R1 671B in full precision with room for large KV caches and concurrent users.

Every BIZON enterprise system is custom-configured. No fixed SKUs. BIZON engineers work with your team to match the GPU configuration, cooling solution (including water-cooled options for sustained workloads), and software stack to your specific deployment requirements.

The Bottom Line

The Mac Mini and Mac Studio are capable machines held back by bandwidth physics. For quantized models under 30B parameters, Apple Silicon delivers a perfectly usable single-user experience, especially the Mac Mini M4 Pro as an affordable entry point. But across every comparable hardware tier, NVIDIA GPUs deliver 2-4x more tokens per second for LLM inference. That's not a knock on Apple's engineering. It's the consequence of architectural choices. Unified memory trades bandwidth for capacity, and for LLM inference, bandwidth is the metric that matters.

A single RTX 5090 delivers 6.6x the Mac Mini's bandwidth and 3.3x the Mac Studio M4 Max's. Two of them deliver 4.4x the M3 Ultra's bandwidth. For teams running concurrent inference or production workloads, multi-GPU NVIDIA configurations extend that advantage even further. And the software ecosystem, from vLLM to TensorRT-LLM to the entire fine-tuning toolchain, runs deeper and more mature on CUDA than anything available on Metal today.

The Apple Silicon myth persists because "256GB of unified memory" is easy to understand and "1,792 GB/s of memory bandwidth" isn't. Tokens per second equals bandwidth divided by model size, with a 65% real-world efficiency factor. Apply it to any hardware that launches next month, next year, or five years from now. The physics don't change. Only the numbers get bigger.
