Best CPU, GPU, RAM for Molecular Dynamics in 2026 [ Updated ]

Last verified: 2026. System specs, GPU performance figures, and molecular dynamics software versions confirmed against official NVIDIA sources, GROMACS 2026.1 release notes, and bizon-tech.com.

For lab-scale MD simulations in 2026, the RTX 5090 leads consumer GPU benchmarks for AMBER workloads and is a strong performer across GROMACS and OpenMM. A four-card water-cooled system gives the lab four independent trajectories at maximum sustained clock. For most production workloads, 128 to 256 GB of ECC RAM covers the majority of use cases. NVMe is strongly recommended over SATA for four-trajectory parallel runs. Researchers pushing past 10 million atoms or running viral capsid NAMD simulations step up to H200 class VRAM. Everyone else wins by balancing the whole system, because every spoke around the GPU (CPU, RAM, NVMe storage, and cooling) gates ns/day once the GPU stops being the bottleneck.

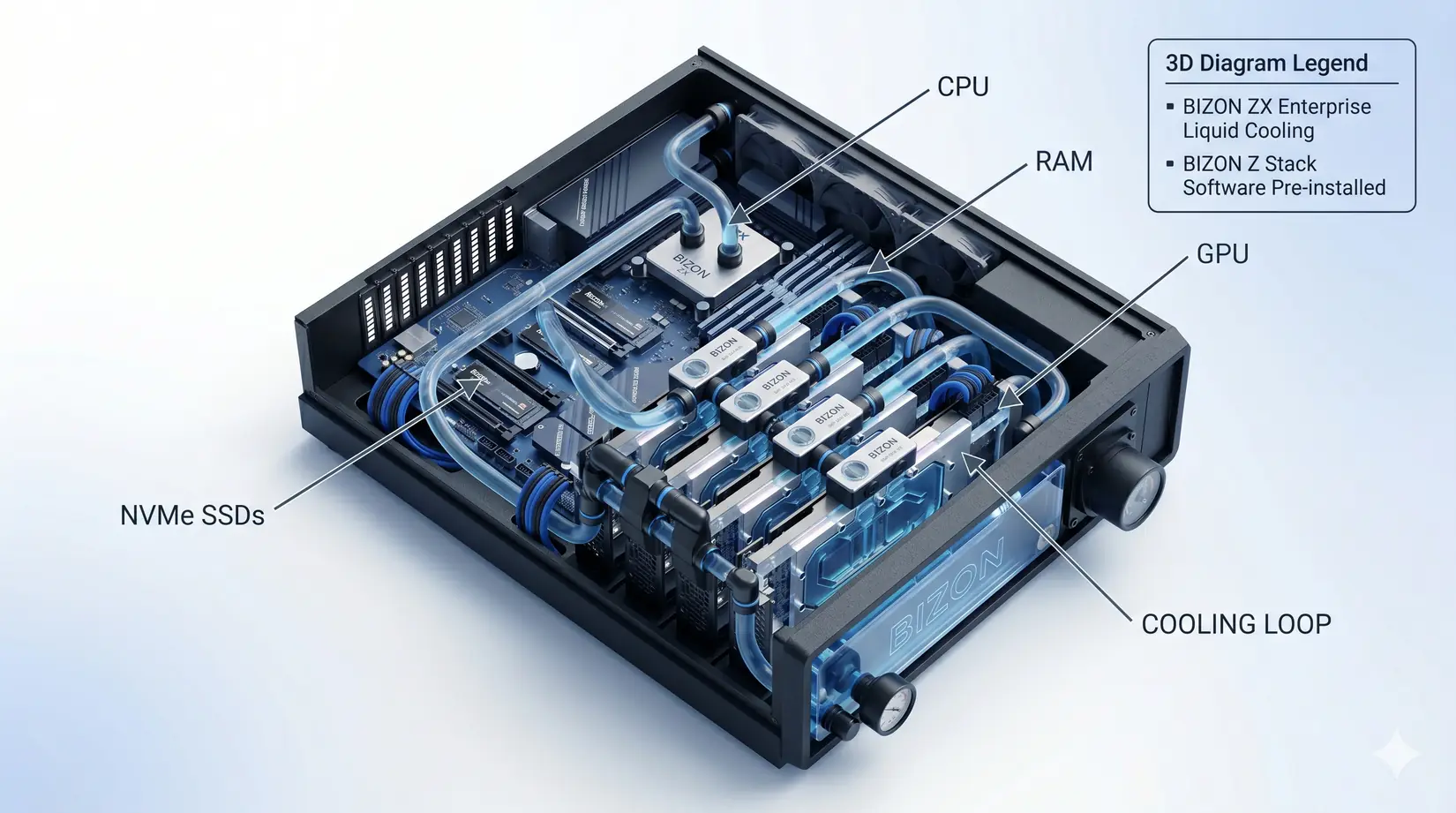

The 4-GPU RTX 5090 water-cooled MD workstation, hero configuration for the recommendations that follow.

Quick glossary before we go further. ns/day means how much simulated biological time the GPU processes in 24 hours, so higher is faster. A 100 ns/day system finishes a 1 microsecond production run in 10 days, and that number is the currency of a modern MD lab.

The bigger story is under those numbers. Per the NAMD 3.0 release announcement and the AMBER 24 GPU performance documentation, MD simulations have shifted into what NVIDIA calls the GPU-Resident era. NAMD 3.0, AMBER 24, and OpenMM now keep the simulation on the GPU instead of shuttling data back to the CPU every step, removing the host-device round-trip that capped ns/day in earlier GPU-offload mode. NAMD 3.0's GPU-Resident Mode reports a multi-fold throughput jump compared to GPU-offload mode on the same hardware. A properly configured desk-side workstation can handle work that previously required cluster queues. The system around the GPU matters more than ever when the GPU runs flat-out for a week at a time.

NVIDIA Developer on the High Performance Computing (HPC) software stack that powers modern MD engines, useful context for the GPU-Resident era shift covered in this guide. NVIDIA Developer YouTube channel.

A lab that used to queue week-long jobs on a shared cluster and wait days for an allocation now starts a trajectory Monday morning and has results by lunch on Wednesday. Picking the right GPU still leaves RAM, storage, cooling, and power delivery to gate sustained ns/day across the run. BIZON's pre-configured BizonOS image ships with NAMD, GROMACS, LAMMPS, and VMD pre-installed via NVIDIA GPU-accelerated containers, so a new workstation runs production simulations without a setup phase.

What Balances an MD System?

Five things gate ns/day in an MD workstation. GPU, CPU, RAM, NVMe SSDs, and sustained thermals all have to hold the line at the same time. MD simulations run for days or weeks without stopping, not in burstable training-style windows, so every piece of the system has to hold its throughput the whole time.

The balanced MD workstation. GPU dominates, but CPU, RAM, NVMe SSDs, and cooling all gate sustained throughput.

The hub-and-spoke view makes the trade-off concrete. Drop any one spoke a tier and the whole rig pays for it in lost ns/day, because MD engines hand work back and forth between the GPU, the CPU, system RAM, and the NVMe drives on every timestep. The CPU is the first spoke to inspect once the GPU is picked, and it is the one most labs under-spec when they pour budget into additional GPUs. GROMACS makes the bottleneck measurable. GROMACS 2026.1 continues the default hybrid scheme where PME electrostatics run on CPU, so adding GPU cores without a matching CPU tier produces diminishing returns at the PME step.

Why Do MD Engines Still Need CPU?

GROMACS, NAMD, and LAMMPS still run meaningful work on the CPU even after the GPU-Resident shift. Bonded interactions, Particle Mesh Ewald (PME) electrostatics, domain decomposition, and trajectory I/O all sit on cores. An underpowered CPU bottlenecks the GPU, and the per-engine breakdown below shows how the core-count target varies by engine.

• AMBER 24 - GPU-Resident, so CPU load is low. Clock speed matters more than core count, and a relatively small core allocation per GPU is typically sufficient.
• NAMD 3.0 - GPU-Resident since version 3, though communication and setup still touch the CPU. 8 to 16 cores per GPU is a typical working target.
• GROMACS 2026.1 - Per the GROMACS user guide on hybrid CPU-GPU execution (current through the 2026.1 release, which succeeded the 2026.0 January 19 GA), the CPU still runs PME and bonded forces in the default hybrid scheme. Most GROMACS practitioners recommend at least 16 CPU cores per GPU for serious ensemble work, with 24 to 32 offering headroom for PME.
• LAMMPS - Hybrid CPU and GPU by design, and 16 to 32 CPU cores per GPU is a typical working range depending on system type.
• OpenMM - GPU-oriented, with the GPU handling most computation. A small CPU allocation of 4 to 8 cores per GPU is typically sufficient.

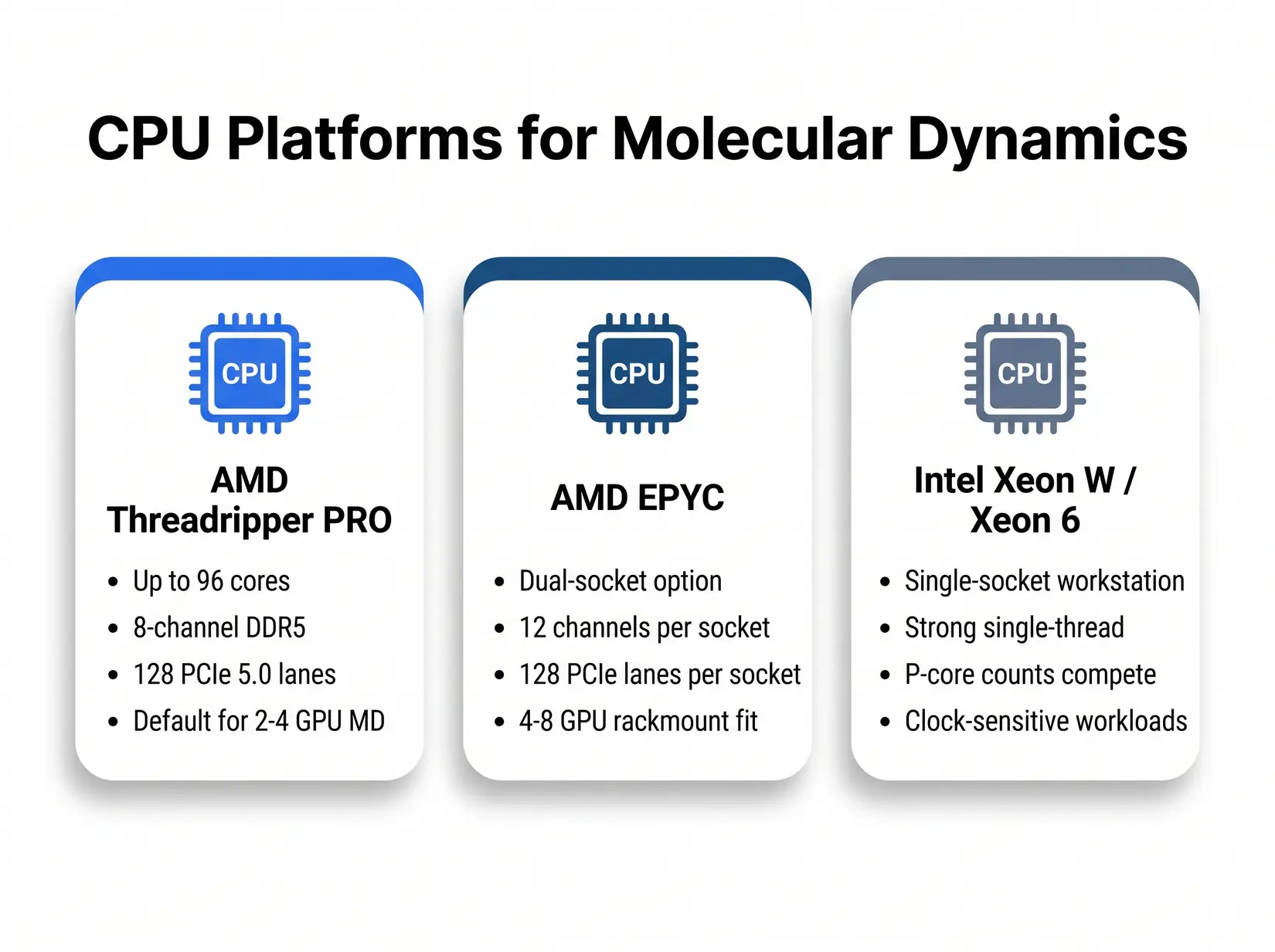

The three MD-appropriate CPU platforms in 2026 are Threadripper PRO, EPYC, and Xeon W or Xeon 6. Threadripper PRO is the default when the lab needs four GPUs desk-side with high clocks and 8-channel memory. EPYC earns its slot on dual-socket rackmount servers running 6 to 8 GPUs where 12-channel-per-socket bandwidth and 256 PCIe 5.0 lanes stop being a luxury. Xeon W or Xeon 6 plays where Intel is already the lab standard or where single-thread performance on serial NAMD and LAMMPS phases is the binding constraint. All three fail the same way when under-spec'd, with GROMACS PME stalls and LAMMPS bonded-force lag leaving the GPU idle.

Three CPU platforms cover the MD workstation tier from desk-side to rackmount. Pick by workload pattern, not by brand.

All three platforms run every MD engine in this guide. The choice is which one matches the lab's GPU density, memory-bandwidth needs, and IT standardization.

• AMD Threadripper PRO - Up to 96 cores on the 7000 WX series, 8-channel DDR5, and 128 PCIe 5.0 lanes. Default for 2 to 4 GPU MD workstations. This is the CPU in the BIZON ZX5500.
• AMD EPYC - Per AMD's EPYC 9004 and 9005 specs, dual-socket configurations unlock 12-channel memory per socket and 128 PCIe 5.0 lanes per socket. Pick EPYC for dense NAMD and GROMACS deployments above 4 GPUs.
• Intel Xeon W and Xeon 6 - Solid single-socket workstation option. Strong single-thread performance for serial NAMD and LAMMPS, and Xeon 6 P-core counts hold their own against Threadripper PRO on clock-sensitive workloads.

MD simulations are more CPU-sensitive than broader scientific computing and data science workloads. GROMACS hands the GPU a batch every timestep while the CPU is still computing PME and bonded forces on that same step. That tight feedback loop turns an under-sized CPU into a measurable ns/day penalty on every trajectory, with the GPUs sitting idle waiting on steps the CPU cannot keep up with. The structural difference from LLM training is real. LLM kernels run in large GPU-to-GPU matrix operations that let the CPU stay idle during compute, while MD engines are built around tight CPU-GPU handoff at every timestep.

How Much RAM Do MD Workflows Need?

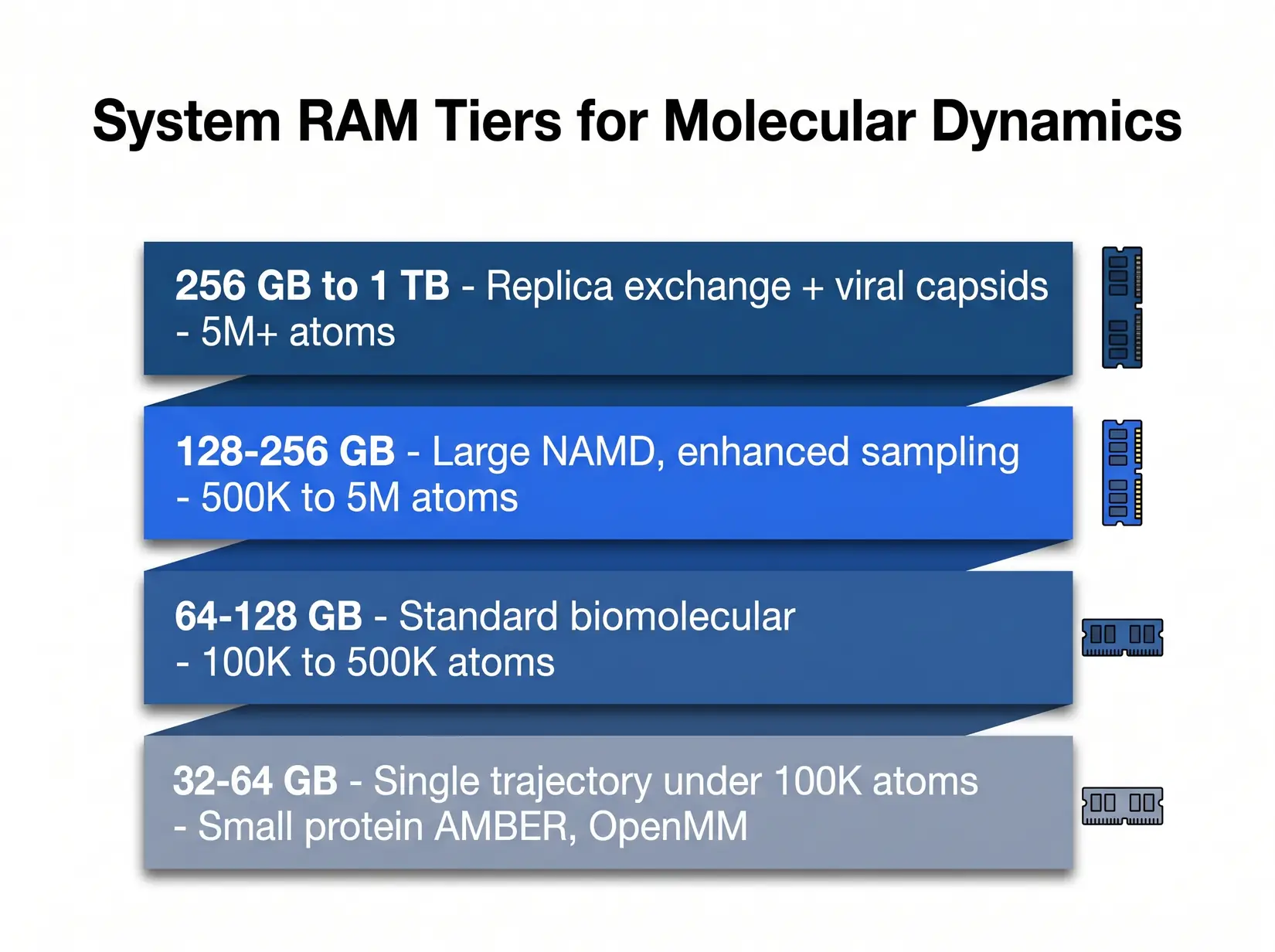

64 GB is a reasonable starting floor for dedicated MD work, and 128 to 256 GB covers most production trajectories. RAM scales with system size and concurrent replicas or trajectories, not with VRAM. An MD lab running four GROMACS trajectories in parallel holds four sets of topology, coordinate, and force arrays in system RAM at once, plus the analysis pipeline pulling each trajectory back off disk. Running four parallel trajectories multiplies system RAM demand substantially compared to a single-trajectory setup. ECC memory matters here. A single bit flip mid-run corrupts a week-long trajectory in ways that are hard to detect at analysis time.

RAM scales with system size and replica count. Most production MD labs land in the 128 to 256 GB tier.

The tier bands map to real working ranges once you factor in concurrent trajectories, replica exchange, and VMD analysis loading a full trajectory into memory. The ensemble column is where replica exchange, umbrella sampling, and parallel tempering expose the hidden multiplier. A 128 GB rig that runs a single 500K atom trajectory cleanly chokes on an 8-replica exchange of the same system. Size against the single-trajectory column for the largest system you currently run, then re-check the ensemble column if the lab runs more than one trajectory at a time.

System Size	Single Trajectory RAM	Four-trajectory Ensemble or Replica Exchange RAM	Typical Workload
Under 100K atoms	32 GB	64 to 128 GB	Small protein AMBER, OpenMM
100K to 500K atoms	64 GB	128 to 256 GB	Standard biomolecular AMBER, GROMACS, NAMD
500K to 5M atoms	128 GB	256 to 512 GB	Large NAMD, enhanced sampling
Over 5M atoms	256 GB	512 GB to 1 TB	Viral capsid, whole-cell organelle

Methodology note. These ranges reflect typical working memory for the trajectory files, analysis pipeline, and concurrent replica loads. Individual workflow memory will differ. VMD in particular loads full trajectories into RAM during analysis, and that is when labs discover they should have bought 256 GB instead of 128 GB. A safer rule is to size for the peak RAM of the full pipeline (simulate, analyze, re-cluster) rather than the steady-state RAM of the simulation alone.

Memory channel population matters as much as total capacity on multi-GPU systems. Populating all eight channels on a Threadripper PRO or all 12 channels per socket on an EPYC gives the CPU bandwidth to feed the GPUs through PME and bonded-force steps. Half-populating to hit a cheaper capacity number starves the CPU even when total RAM looks fine. We recommend populating every memory channel on any multi-GPU MD workstation for this reason.

Is NVMe Storage Required for Production MD?

NVMe is strongly recommended for four-trajectory parallel runs. A GROMACS or AMBER run producing 1 microsecond of simulation time can generate hundreds of GB of .xtc or NetCDF trajectory data, hitting disk in concentrated bursts every few hundred picoseconds. SATA SSDs can become a bottleneck when four trajectories write simultaneously at checkpoint boundaries, where each trajectory may write several GB of restart data. PCIe Gen 5 drives like the Samsung 9100 Pro (14,800 MB/s rated read) and WD_BLACK SN8100 (14,900 MB/s rated) post sequential reads more than 25 times the 550 MB/s SATA ceiling, and the Threadripper PRO 7000/9000 and EPYC 9004/9005 platforms in BIZON MD chassis run Gen 5 lanes natively, so a Gen 5 drive absorbs those bursts without backing up the simulation loop.

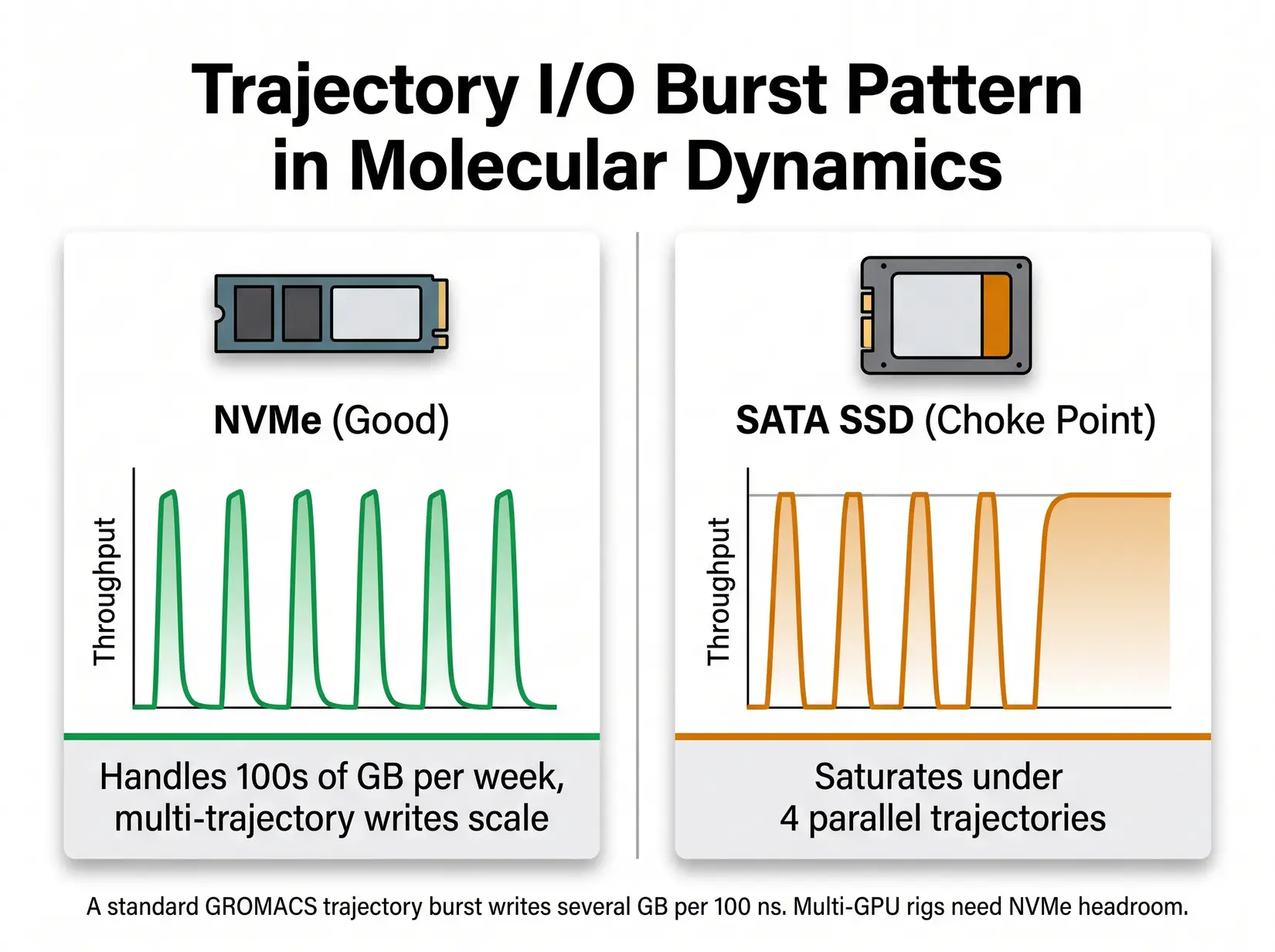

MD trajectory writes are bursty. NVMe SSDs absorb the bursts. SATA SSDs commonly become a bottleneck under multi-trajectory checkpoint and analysis workloads.

Three write patterns decide the NVMe storage floor. Sustained trajectory output runs continuously in the background, periodic full-state checkpoints hammer IOPS in concentrated bursts, and the analysis phase pulls entire trajectories back into memory for VMD or MDAnalysis. Each one hits disk with a different cadence, and each one is where a lab that under-specs storage actually feels it.

• Production trajectory output - A 500K-atom GROMACS run with typical output stride can generate several GB of .xtc trajectory data per 100 ns of simulation time. Active trajectory data grows quickly on multi-GPU rigs running parallel production simulations.
• Checkpoint and restart - NAMD and AMBER write a full state checkpoint every N steps. On a large NAMD run, checkpoint files can reach multiple GB and are rewritten repeatedly throughout the simulation. IOPS matter as much as throughput.
• Analysis phase - VMD and MDAnalysis load full trajectories into memory, so read rate drives how long the analyst sits waiting. NVMe SSDs cap SATA's 550 MB/s ceiling by a wide margin, and analysis reads keep pace with the sequential read headroom those drives provide.

For single-GPU workstations, a 2 to 4 TB NVMe drive is the right starting point. One fast drive handles trajectory output and checkpoint writes for a single researcher's workload without thermal throttle or backpressure on the simulation loop.

For 2 to 4 GPU rigs running ensembles, an NVMe-first storage tier with a fast working set plus a larger slower archive holds up under sustained trajectory I/O. Pairing two NVMe drives in RAID 0 is one pattern labs use to absorb checkpoint bursts without backpressuring the simulation, but it is a configuration choice rather than a baked-in default. BIZON sizes the storage tier against the actual engine and trajectory-count profile on each quote, so the layout reflects the customer's pick list, not a preset.

For 4 to 8 GPU department-scale systems, 4 to 8 TB of fast SSD for active work plus 20 TB or more of slower bulk storage for the archive covers most pipelines. Enterprise NVMe SSDs up to 30 TB per slot plus optional 4- or 8-port RAID NVMe controllers (PCIe 4.0 or 5.0) scale the storage tier for labs running longer campaigns or larger archive footprints.

Is Water Cooling Required for 24/7 MD?

Water-cooled BIZON multi-GPU chassis hold sustained GPU clocks through multi-day MD production runs. Air-cooled four-plus GPU consumer builds may throttle under the same conditions. Per NVIDIA's RTX 5090 datasheet (575W) and the RTX PRO 6000 at 600W, thermal density inside a 4-GPU chassis climbs fast, and the choice of cooling architecture is what separates sustained-clock operation from throttle-limited production.

BIZON's production liquid-cooled chassis running four GPUs under sustained load, the thermal architecture behind our multi-GPU MD workstation lineup.

PSU sizing is the other failure mode that gets missed on multi-GPU MD. Most BIZON MD workstations ship with two or more 80 Plus Gold, Platinum, or Titanium PSUs as standard, sized to the full chassis configuration rather than the nameplate GPU draw. Redundant rails give the system the transient headroom MD workloads demand, so the machine absorbs the spikes that happen when every GPU hits a kernel boundary at once instead of tripping mid-run. On a four-RTX-5090 workstation, GPU TDP alone reaches 2,300W, and the full system draw including CPU, storage, and cooling overhead typically runs several hundred watts above GPU TDP alone, pushing total system draw well above 2,300W. Two redundant PSU rails are necessary, not optional, at that power envelope.

Your Workstation vs Cloud vs Cluster

A workstation pays its full price up front, then typically runs for three to five years. Cloud GPU rental shifts the cost curve and the operational model. For labs running heavy daily MD, the workstation usually wins on three fronts that are not about pure dollar arithmetic. Data stays in-lab without staging copies to and from cloud storage, procurement workflows match how universities and pharma actually pay for capital equipment, and the hardware is yours to optimize against your specific MD pipeline.

Queue time, data privacy, and long-run cost all favor a local workstation for sustained MD workloads.

A cluster trades capital cost for queue time and shared-tenancy constraints. Cloud rental keeps billing every trajectory, every checkpoint, every analysis pass. The five factors below are where local hardware consistently wins for production MD labs.

• Cluster queue time - Cluster queue times vary, but a PhD student waiting days for an allocation is a familiar experience in many university compute environments. A desk-side workstation runs immediately. The acceleration is time-to-paper, not just compute.
• Cloud GPU rental - Hopper-class rental bills by the GPU-hour at commercial rates. The meter keeps running on every trajectory, checkpoint, and analysis pass. Owning the hardware retires the meter.
• Data privacy - Sensitive protein structures, pre-publication data, and pharma IP often favor on-prem systems for data governance and control. On-premise MD avoids cloud data handling requirements entirely.
• Grant eligibility - Professional SKUs (RTX PRO 6000, H100, H200) and workstation-class systems are easier to justify on equipment grants than consumer GPUs. BIZON provides institutional invoicing for federal and academic research procurement workflows.
• Total Cost of Ownership (TCO) - Depreciation of owned hardware beats recurring GPU-hour billing for any lab running daily MD, and the gap widens over the standard 3 to 5 year hardware lifecycle.

Common MD Workstation Mistakes

The biggest MD system mistake in 2026 is under-sizing the CPU, RAM, or storage relative to the GPU count. Five mistakes show up on real customer pre-sales calls, and they are the ones that cost labs the most money. GPU-choice mistakes (H100 for AMBER, 24 GB for 50M atoms) are covered in the MD GPU buyer guide.

System-build mistakes we see on real customer calls.

The five mistakes below all share one root cause. The lab spent the GPU budget right and let the CPU, RAM, storage, cooling, or PSU drift down a tier to keep the quote under a number. Each shortcut shows up later as lost ns/day or a mid-week shutdown, not as an obvious red flag at purchase.

• Ignoring CPU for GROMACS - PME and bonded force calculations still run on CPU cores even in GPU-accelerated mode. A weak CPU bottlenecks the whole pipeline.
• No NVMe storage budget - GROMACS .xtc and AMBER NetCDF trajectories generate hundreds of GB per run. Spinning disks kill I/O. A single SATA SSD chokes under four parallel trajectories.
• Under-sized RAM for replica exchange - Replica exchange and parallel tempering multiply in-memory state by the number of replicas. A 64 GB system runs fine for a single trajectory but locks up on an 8-replica exchange across a 500K atom system.
• Air-cooled 4-GPU consumer chassis for 24/7 max-load production - Four RTX 5090s in an airflow chassis tolerate short training jobs but throttle under sustained 24/7 MD load on consumer silicon, and the lost throughput compounds across a production week. Water cooling belongs in the chassis decision when four consumer GPUs run continuous max-load production. Hopper PCIe NVL silicon (H100, H200) in a dedicated 2U rackmount air chassis is engineered for that thermal envelope and does not share the throttle risk.
• Single-PSU builds for multi-GPU Blackwell - Transient spikes on four RTX 5090s trip nameplate-matched single-PSU rigs mid-run. Multi-GPU MD systems need redundant 80 Plus Gold, Platinum, or Titanium PSUs sized to the full chassis configuration rather than the nameplate GPU draw.

Budget the system, not just the GPU. On a 24/7 MD run, every spoke that drops a tier costs ns/day.

Recommended BIZON MD Workstations

BIZON offers three MD tiers in 2026, from a single-researcher workstation up to an 8-GPU SXM5 server with full NVLink fabric for whole-cell NAMD work. Click through to any system below to configure and order.

Every BIZON MD system ships with BizonOS, our in-house Ubuntu image with NVIDIA drivers, CUDA, and Docker tuned for BIZON hardware. NAMD, GROMACS, LAMMPS, and VMD come preinstalled and tested on top, delivered as NVIDIA GPU-accelerated containers. BizonOS is the practical advantage. Drivers, CUDA, containers, and MD tools arrive prevalidated instead of becoming a month-long setup project. Every system ships with a 3-year warranty and lifetime technical support, and 500+ universities, companies, and government entities run BIZON hardware today. For the GPU-by-engine argument that drives SKU choice inside each tier, see our MD GPU buyer guide.

Individual Researchers (1 to 2 GPU)

Per AMBER's GPU Support documentation, single-GPU performance is the priority for most lab-scale AMBER workloads, and pmemd.cuda does not scale efficiently across multiple GPUs for a single trajectory. OpenMM runs one trajectory per GPU efficiently, so a second GPU means a second concurrent trajectory, not a faster single run. For PhD students, individual PIs, and standard AMBER or OpenMM trajectory work, you are running one trajectory at a time on systems under 1M atoms, and what you need is fast turnaround between a design change and the next ns/day number. A single RTX 5090 at 32 GB hits that target.

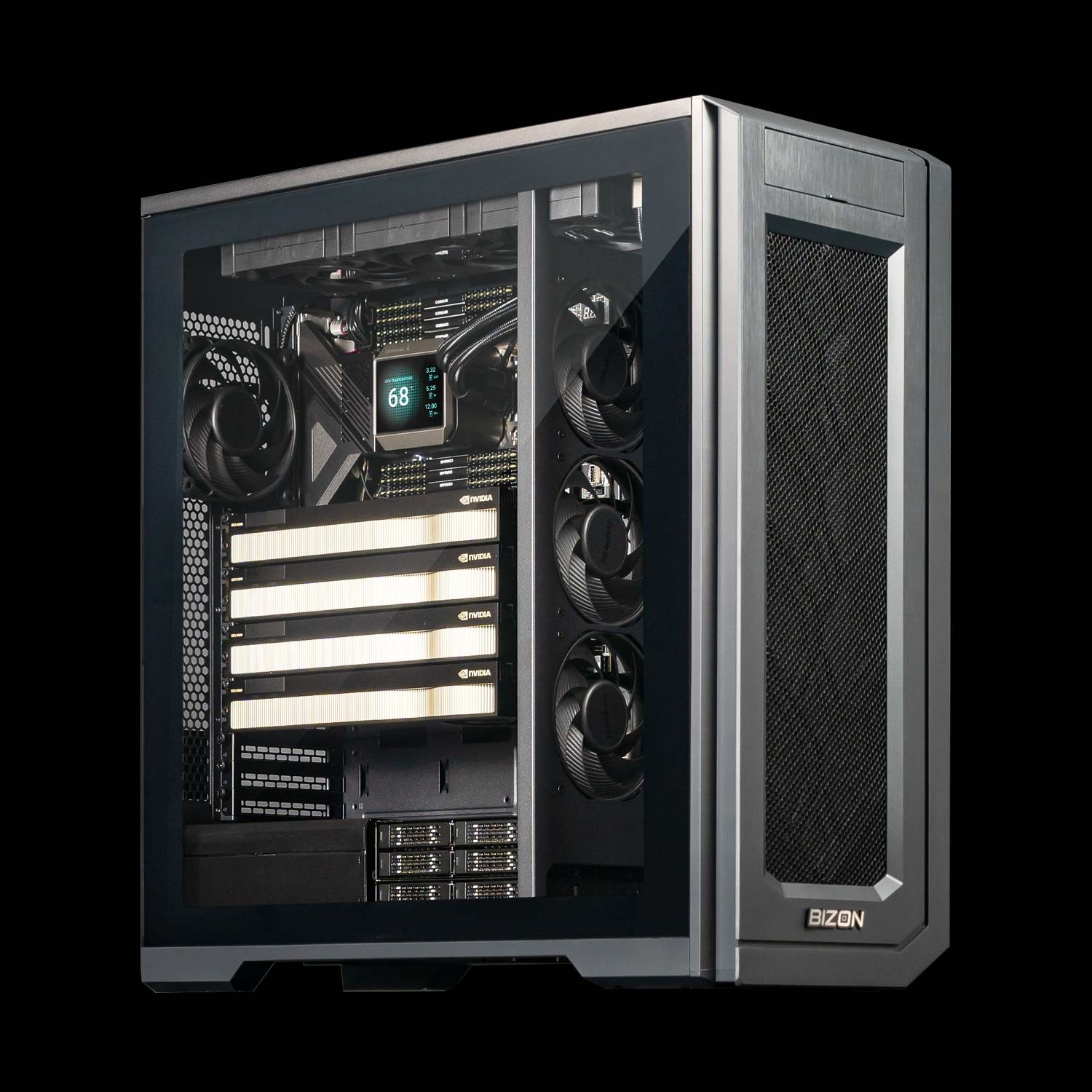

Drug Discovery Labs (2 to 4 GPU)

This tier is where ensemble GROMACS, multi-GPU NAMD, and drug discovery screening actually get done. The best cost-per-ns/day ratio for MD in 2026 sits here. A 4-GPU rig running four independent GROMACS trajectories reaches roughly four times the total throughput of a single-GPU rig, since each GPU runs its own trajectory at full speed, and drug discovery pipelines live here because the workload is ensemble-shaped and the system amortizes across 20 or 40 candidate ligands. BIZON configurations pair a workstation chassis with full 4-GPU airflow or water cooling and a Threadripper PRO or EPYC CPU to feed PME across all four GPUs.

The hybrid-cooled chassis above handle drug-discovery ensemble screening and periodic production where the four GPUs alternate between active and idle phases across a campaign. For continuous 24/7 max-load production on four consumer cards, step up to the water-cooled ZX5500 in the next section. Hopper PCIe NVL silicon in the X8000 G3 is rated for continuous 24/7 operation at datacenter thermal specifications, which differs from the consumer-card sustained-load context.

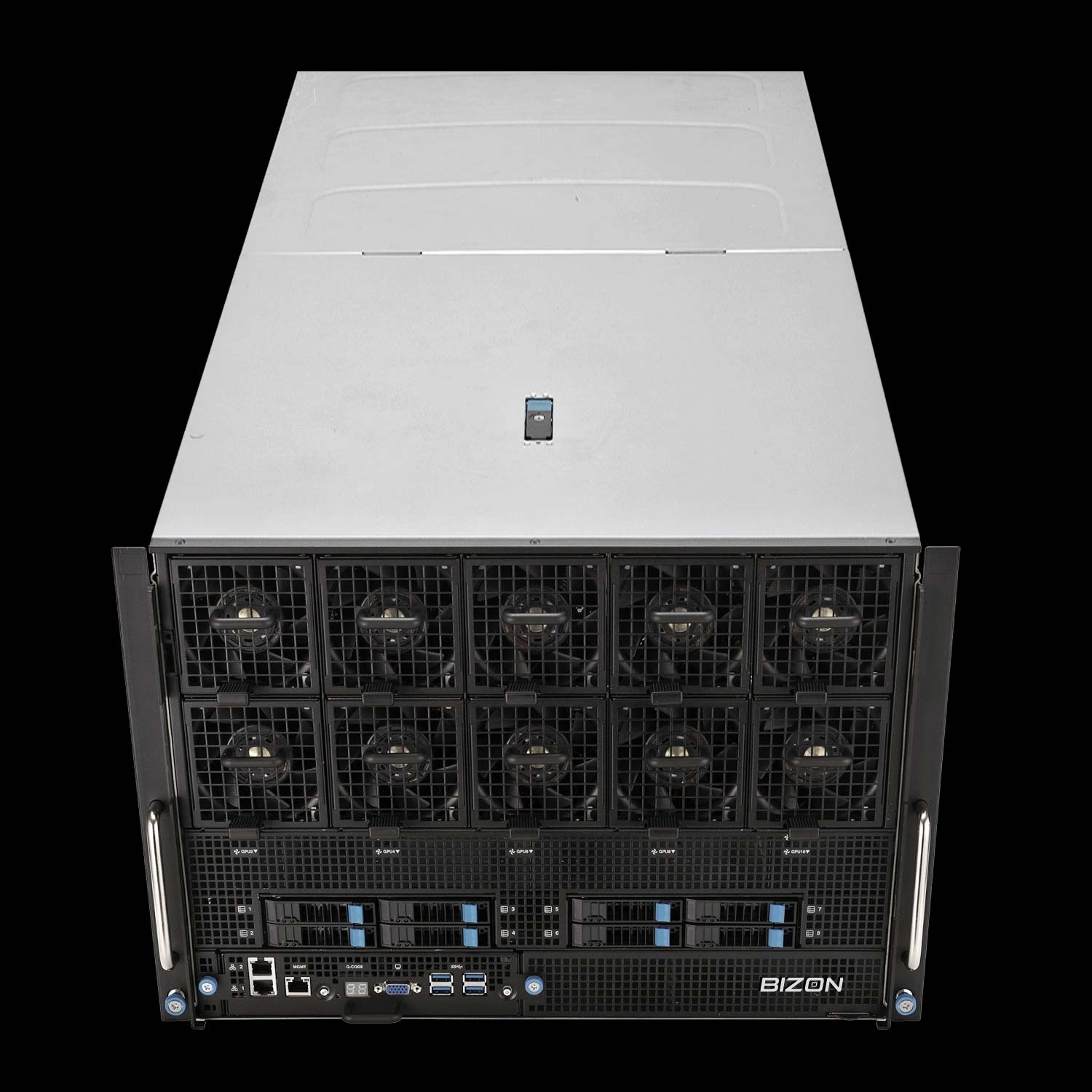

Department Scale (4 to 8 GPU)

At this tier a BIZON system directly replaces a departmental HPC node. Water cooling on the ZX5500 tower and ZX9000 server holds sustained GPU clocks through multi-day 24/7 MD production runs. The X9000 G3 provides 8-way SXM5 NVLink fabric, offering substantially higher cross-GPU bandwidth than PCIe peer-to-peer, and that bandwidth advantage matters for NAMD GPU-Resident Mode above 10M atoms. The X9000 G4 steps that ceiling up with eight B200 SXM5 GPUs at 192 GB HBM3e per card for whole-cell systems beyond H200 capacity.

Getting Started With Your MD Build

The shortest route to production MD in 2026 starts with a system sized to your exact workload, not a box picked from a tier page. Send us three numbers and our build team will size it for you: the MD engines you run, the atom counts you are targeting, and the number of trajectories you want running in parallel. Start here: BIZON Molecular Dynamics Workstations and Servers.

BIZON manufactures the workstations and servers discussed in this article. Benchmark figures and product specifications reflect published vendor sources and BIZON build-floor experience. Our editorial recommendations follow the engine-first, workload-first analysis shown above. They are not constrained by inventory or commercial considerations.
