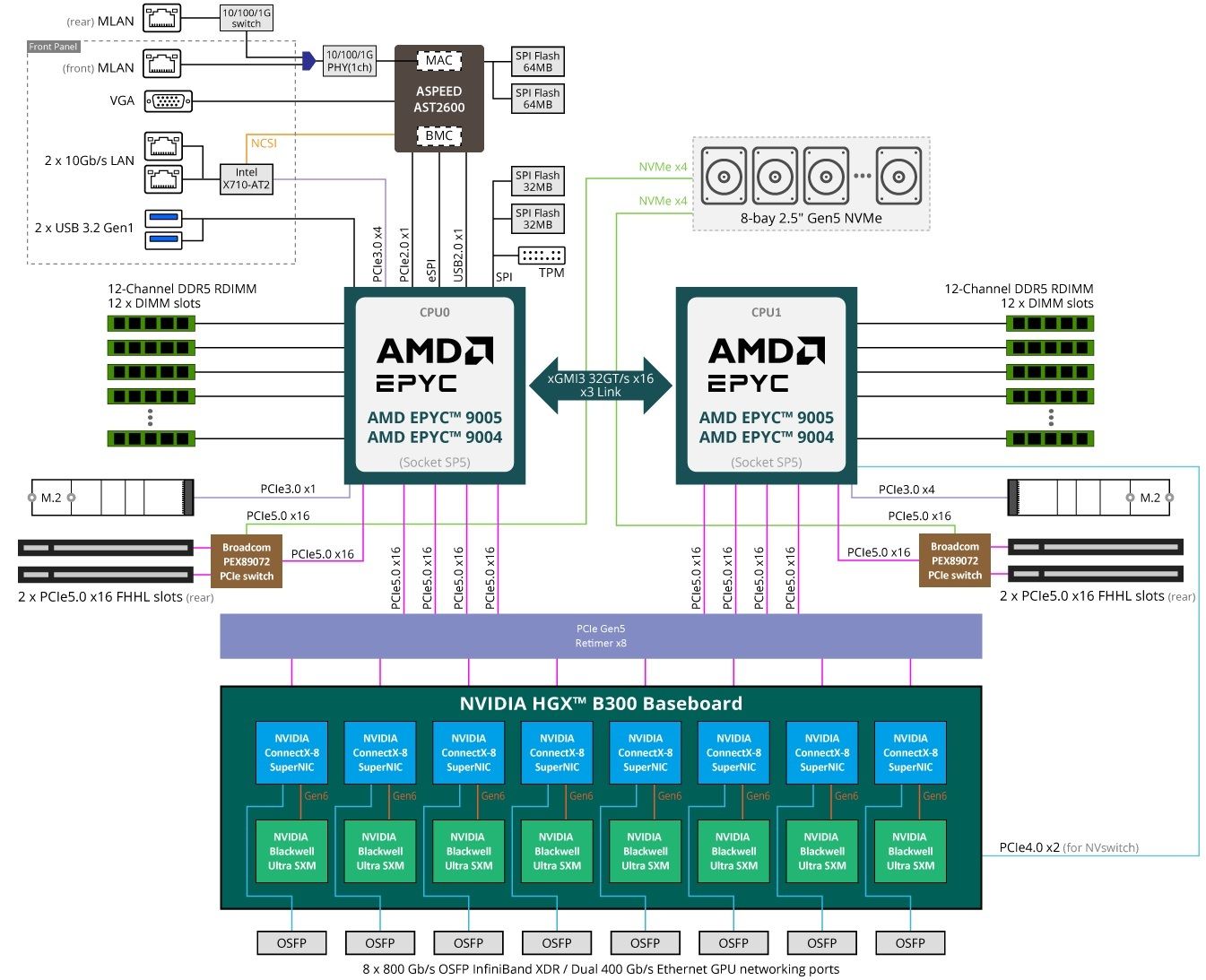

BIZON X9000 G5 – 8 GPU NVIDIA HGX B300 AI GPU Server for Data Centers (SXM)

• Artificial Intelligence
• Big Data Analytics
• High-performance Computing
• Research Lab/National Lab
• Astrophysics, Business Intelligence

• NVIDIA HGX B300
• 8 x 800 Gb/s OSFP InfiniBand XDR / Dual 400 Gb/s Ethernet GPU networking ports via onboard NVIDIA ConnectX-8 SuperNIC
• 1.8TB/s GPU-to-GPU bandwidth with NVIDIA NVLink and NVSwitch
• Dual AMD EPYC 9005/9004 Series Processors
• 12-Channel DDR5 RDIMM, 24 x DIMMs
• Compatible with NVIDIA® BlueField-3 DPUs
• 2 x 10Gb/s LAN ports via Intel X710-AT2
• 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
• 8 x 2.5" Gen5 NVMe hot-swap bays
• 4 x FHHL PCIe Gen5 x16 slots
• 12 x 3000W 80 PLUS Titanium redundant power supplies

Dual CPU server board.

• AMD EPYC 9005/9004 series processors (Socket SP5).
• System on Chip (SoC).

• AMD EPYC 9005/9004 series processor family
• Dual processors, 5nm
• Up to 192-core, 384 threads per processor
• cTDP up to 500W

• Up to 3072 GB DDR5 ECC Buffered
• 24 x DIMM slots
• Support DDR5 RDIMM
• 12-Channel memory per processor

NOTE: actual RAM clock speed depends on the CPU specifications and may vary.

Front:

• 2 x 10Gb/s LAN ports (Intel X710-AT2)
• 1 x 10/100/1000 management LAN (Dedicated IPMI)

Rear:

• 8 x 800 Gb/s OSFP InfiniBand XDR / Dual 400 Gb/s Ethernet, for GPU networking, via NVIDIA ConnectX-8 SuperNIC

Rear (MLAN board - CDB66):

• 1 x 10/100/1000 management LAN (Dedicated IPMI)

Optional:

• 10 Gigabit Dual Port Ethernet (2x RJ45)
• 25 Gigabit Dual Port Ethernet (2x SFP28)
• 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP)
• 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP)

• Integrated in Aspeed AST2600
• 1 x VGA port

8 x NVIDIA HGX B300 GPUs (SXM5)

N/A

• 8 x 2.5" Gen5 NVMe (front hot-swap)
• 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1 (internal)
• 1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0 (internal)

N/A

N/A

N/A

• 4 x FHHL x16 (Gen5 x16), from PEX89072

• 2 x USB 3.2 Gen1 (Type-A)
• 1 x VGA
• 2 x RJ45
• 1 x MLAN (default)
• 1 x Power button with LED
• 1 x ID button with LED
• 1 x NMI button
• 1 x Reset button
• 1 x Storage activity LED
• 1 x System status LED

• 8 x OSFP ports
• 1 x MLAN port (MLAN board - CDB66)

1 x TPM header with SPI interface

• 12 x 3000W 80 PLUS Titanium redundant power supplies

AC Input:

• 100-127V~/ 14.2A, 50-60Hz
• 200-220V~/ 15.8A, 50-60Hz
• 220-240V~/ 14.9A, 50-60Hz

DC Input:

• 240Vdc/ 14A

DC Output:

• Max 1450W/ 100-127V~
• +54V/ 26.6A
• +12Vsb/ 3A
• Max 2900W/ 200-220V
• +54V/ 53.4A
• +12Vsb/ 3A
• Max 3002.4W/ 220-240V
• +54V/ 55.6A
• +12Vsb/ 3A

NOTE: X9000 G5 comes with 12 x 3000W Redundant (6+6) power supplies. Total 12 power supplies (6 main + 6 backups).
That means that maximum output power is 18000 W (6 x 3000W) with 18000W (6 x 3000W) for backup power supplies.
If one or two power supplies will fail, the other backup power supply starts running to keep the computer powered up.
The switch between the power supplies is seamless, so as not to interrupt the normal use of the computer.

Power cord requirements:
C19 (PSU) to 5-15P (regular US home outlet).
C19 (PSU) to C20 (plug) (PDU).

100-120V (standard US outlet):
If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need twelve (12) 20 A /120V outlets with a dedicated circuit.

Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power. Actual power consumption depends on your configuration (graphics card and CPU).

Power consumption example:
X9000 with 8 x Nvidia B300 + 2 x AMD EPYC 9335 CPUs = 2700-2900W (100% load for all the GPUs and CPUs).

Information for reference only. Consult your electrician for more details.

The system power supply is universal and will work worldwide. Compatible with 110v – 240v (50-60 Hz).

BizonOS and BizonOS Control Panel.
BizonOS includes a user-friendly, web-based control panel with everything one needs, all organized into one convenient location.

BizonOS features:

• Remote access from anywhere (SSH/VNC)
• Virtual machines
• GPU sharing
• Containers
• One-click software updates
• Jupyter notebooks
• GPU/System monitoring
• accounts, and permissions

• Aspeed AST2600 management controller
• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

• BIZON Z–Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• Rocky Linux 9 (optional).
• Windows 11 Pro (optional).
• Microsoft Windows Server 2022 Standard (optional).
• No operating system (optional).


• Windows Server 2022
• Windows Server 2025
• Red Hat Enterprise Linux 8.10 ( x64) or later
• SUSE Linux Enterprise Server 15 SP7 ( x64) or later
• Ubuntu 22.04.5 LTS (x64) or later
• Ubuntu 24.04 LTS (x64) or later
• VMware ESXi 8.0 Update 3
• VMware ESXi 9.0
• XenServer 8.4

• Motherboard: 2 x 60x60x56mm, 4 x 60x60x76mm
• OSFP ports: 4 x 40x40x56mm
• PCIe slots: 2 x 80x80x56mm
• GPU tray: 15 x 80x80x80mm

• Operating temperature: 50° to 86° F (10° to 30° C)
• Operating humidity: 8%-80% (non-condensing)
• Non-operating temperature: -40° to 140° F (-40°C to 60°C)
• Non-operating humidity: 20%-95% (non-condensing)

8 x NVIDIA B300:

Idle: 60 dB
Max Load (stress test): 75 dB

Measured from 6 ft / 1.8 m distance.

Case

• Rackmountable; 8U; horizontal placement
• Height: 13.8 inches (35.1 cm)
• Width: 17.3 inches (44.7 cm)
• Depth: 36.2 inches (92.3 cm)

Shipping Package

• Height: 24.4 inches (62.0 cm)
• Width: 31.5 inches (80.0 cm)
• Length: 47.2 inches (120.0 cm)
• Weight: 185.2 lbs (84.5 kg) (shipped on a pallet)

• Bizon X9000 G5.
• 1 x Rail kit
• 12 x power cords (USA).
• User manual.
• Benchmark report.

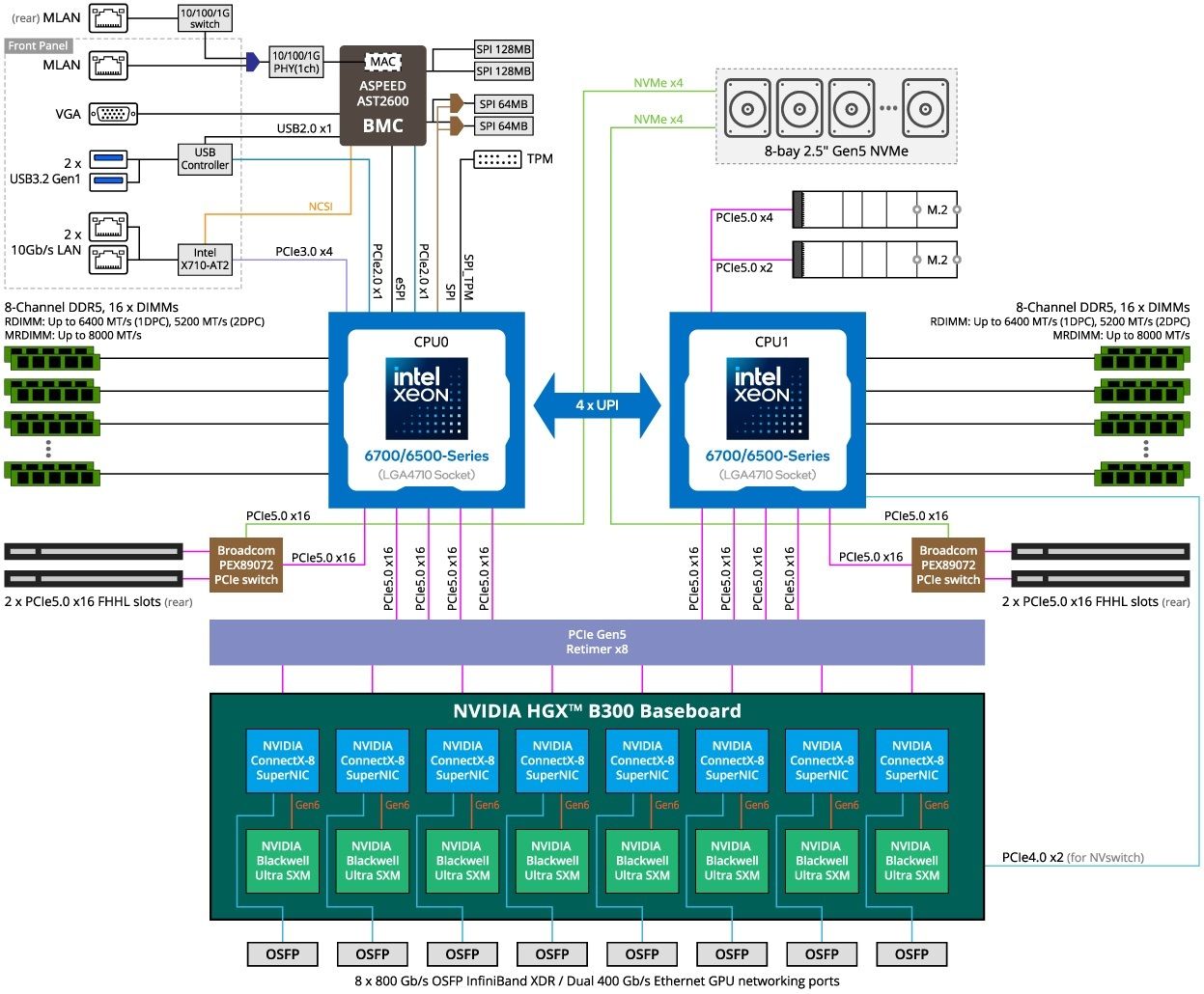

bizon-x9000-0326-g5

• Artificial Intelligence
• Big Data Analytics
• High-performance Computing
• Research Lab/National Lab
• Astrophysics, Business Intelligence

• NVIDIA HGX B300
• 8 x 800 Gb/s OSFP InfiniBand XDR or dual 400 Gb/s Ethernet GPU networking ports via onboard NVIDIA ConnectX-8 SuperNIC
• 1.8TB/s GPU-to-GPU bandwidth with NVIDIA NVLink and NVSwitch
• Dual Intel Xeon 6700/6500-Series Processors
• 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
• Compatible with NVIDIA® BlueField-3 DPUs
• 2 x 10Gb/s LAN ports via Intel X710-AT2
• 2 x M.2 slots with PCIe Gen5 x4 and x2 interface
• 8 x 2.5" Gen5 NVMe/SATA hot-swap bays
• 4 x FHHL PCIe Gen5 x16 slots
• 12 x 3000W 80 PLUS Titanium redundant power supplies

Dual CPU server board.

• Intel Xeon Scalable Processors LGA 4710 (Socket E2).
• System on Chip.

• Intel Xeon 6500-Series / 6700-Series Processors
• Dual processors
• Up to 64-core, 128 threads per processor
• cTDP up to 350W

• Up to 4096 GB DDR5 ECC Buffered
• 32 x DIMM slots
• Support DDR5 RDIMM/MRDIMM
• 8-Channel memory per processor

NOTE: actual RAM clock speed depends on the CPU specifications and may vary.

Front:

• 2 x 10Gb/s LAN ports (Intel X710-AT2)
• 1 x 10/100/1000 management LAN (Dedicated IPMI)

Rear:

• 8 x 800 Gb/s OSFP InfiniBand XDR / Dual 400 Gb/s Ethernet, for GPU networking, via NVIDIA ConnectX-8 SuperNIC

Rear (MLAN board):

• 1 x 10/100/1000 management LAN (Dedicated IPMI)

Optional:

• 10 Gigabit Dual Port Ethernet (2x RJ45)
• 25 Gigabit Dual Port Ethernet (2x SFP28)
• 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP)
• 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP)

• Integrated in Aspeed AST2600
• 1 x VGA port

8 x NVIDIA B300 GPUs (SXM5)

N/A

• 8 x 2.5" Gen5 NVMe/SATA (front hot-swap)
• 1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1 (internal)
• 1 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_1 (internal)

N/A

N/A

N/A

• 4 x FHHL x16 (Gen5 x16), from PEX89072

• 2 x USB 3.2 Gen1 (Type-A)
• 1 x VGA
• 2 x RJ45
• 1 x MLAN (default)
• 1 x Power button with LED
• 1 x ID button with LED
• 1 x NMI button
• 1 x Reset button
• 1 x Storage activity LED
• 1 x System status LED

• 8 x OSFP ports
• 1 x MLAN (MLAN board)

1 x TPM header with SPI interface

• 12 x 3000W 80 PLUS Titanium redundant power supplies

AC Input:

• 100-127V~/ 14.2A, 50-60Hz
• 200-220V~/ 15.8A, 50-60Hz
• 220-240V~/ 14.9A, 50-60Hz

DC Input:

• 240Vdc/ 14A

DC Output:

• Max 1450W/ 100-127V~
• +54V/ 26.6A
• +12Vsb/ 3A
• Max 2900W/ 200-220V
• +54V/ 53.4A
• +12Vsb/ 3A
• Max 3002.4W/ 220-240V or 240Vdc Input
• +54V/ 55.6A
• +12Vsb/ 3A

NOTE: X9000 G5 comes with 12 x 3000W Redundant (6+6) power supplies. Total 12 power supplies (6 main + 6 backups).
That means that maximum output power is 18000 W (6 x 3000W) with 18000W (6 x 3000W) for backup power supplies.
If one or two power supplies will fail, the other backup power supply starts running to keep the computer powered up.
The switch between the power supplies is seamless, so as not to interrupt the normal use of the computer.

Power cord requirements:
C19 (PSU) to 5-15P (regular US home outlet).
C19 (PSU) to C20 (plug) (PDU).

100-120V (standard US outlet):
If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need twelve (12) 20 A /120V outlets with a dedicated circuit.

Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power. Actual power consumption depends on your configuration (graphics card and CPU).

Power consumption example:
X9000 with 8 x Nvidia B300 + 2 x Xeon 6538Y CPUs = 2700-2900W (100% load for all the GPUs and CPUs).

Information for reference only. Consult your electrician for more details.

The system power supply is universal and will work worldwide. Compatible with 110v – 240v (50-60 Hz).

BizonOS and BizonOS Control Panel.
BizonOS includes a user-friendly, web-based control panel with everything one needs, all organized into one convenient location.

BizonOS features:

• Remote access from anywhere (SSH/VNC)
• Virtual machines
• GPU sharing
• Containers
• One-click software updates
• Jupyter notebooks
• GPU/System monitoring
• accounts, and permissions

• Aspeed AST2600 management controller
• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

• BIZON Z–Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• Rocky Linux 9 (optional).
• Windows 11 Pro (optional).
• Microsoft Windows Server 2022 Standard (optional).
• No operating system (optional).


• Windows Server 2022
• Windows Server 2025
• Red Hat Enterprise Linux 8.10 ( x64) or later
• SUSE Linux Enterprise Server 15 SP7 ( x64) or later
• Ubuntu 22.04 LTS (x64) or later
• Ubuntu 24.04 LTS (x64) or later
• VMware ESXi 8.0 Update 3e
• VMware ESXi 9.0
• Citrix Hypervisor 8.2 LTSR CU1
• XenServer 8.4

• Motherboard: 2 x 60x60x56mm, 4 x 60x60x76mm
• OSFP ports: 4 x 40x40x56mm
• PCIe slots: 4 x 80x80x56mm
• GPU tray: 15 x 80x80x80mm

• Operating temperature: 50° to 86° F (10° to 30° C)
• Operating humidity: 8%-80% (non-condensing)
• Non-operating temperature: -40° to 140° F (-40°C to 60°C)
• Non-operating humidity: 20%-95% (non-condensing)

8 x NVIDIA B300:

Idle: 60 dB
Max Load (stress test): 75 dB

Measured from 6 ft / 1.8 m distance.

Case

• Rackmountable; 8U; horizontal placement
• Height: 13.8 inches (35.1 cm)
• Width: 17.3 inches (44.7 cm)
• Depth: 36.2 inches (92.3 cm)

Shipping Package

• Height: 24.4 inches (62.0 cm)
• Width: 31.5 inches (80.0 cm)
• Length: 47.2 inches (120.0 cm)
• Weight: 185.2 lbs (84.5 kg) (shipped on a pallet)

• Bizon X9000 G5.
• 1 x Rail kit
• 12 x power cords (USA).
• User manual.
• Benchmark report.

bizon-x9000-0326-g5
