BIZON G7000 G4 – NVIDIA Quadro RTX Tesla Deep learning and Parallel Computing GPU Server – Up to 8 GPUs, dual Xeon up to 64 cores

• Artificial Intelligence
• Big Data Analytics
• High-performance Computing
• Research Lab/National Lab
• Astrophysics, Business Intelligence

Dual CPU server board.

• Intel Xeon Scalable Processors LGA 4677 (Socket E).
• Intel C741 chipset.

• 4th/5th Generation Intel Xeon Scalable Processors
• Intel Xeon CPU Max Series

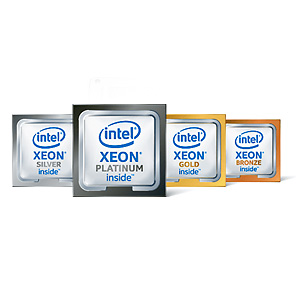

• Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
• Dual processors, 10nm
• Up to 64-core, 128 threads per processor
• cTDP up to 350W

• Up to 8192 GB DDR5 4800 MHz ECC Buffered
• 32 x DIMM slots
• DDR5 memory supported only
• 8-Channel memory per processor architecture
• RDIMM modules up to 64GB supported
• 3DS RDIMM modules up to 256GB supported

NOTE: actual RAM clock speed depends on the CPU specifications and may vary.

• 8 x PCIe slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards *
• 1 x PCIe slot (Gen5 x8 link, LP, HL) for HBA/RAID cards (front)
• 1 x PCIe slot (Gen5 x16 link) for NIC (rear)
• 1 x PCIe slot (Gen5 x8 link) for NIC (rear)
* By default, max supported TDP per GPU – 450W. Orders with NVIDIA H200 will be supplied with a special model of the G7000 server (up to 600W TDP).

• 8 x 3.5"/2.5" Front Hot-swap Storage Bays
• 1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link)

• 2 x 10GbE LAN ports (Intel X710-AT2)
• 1 x 10/100/1000 management LAN (Dedicated IPMI)
• 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; QSFP56) (optional)

Up to 8 Nvidia graphics cards with NVLink support.

Available options:

• Nvidia T1000 8Gb (4 DP)


• Nvidia RTX A6000 48Gb (4 DP)


• Nvidia RTX 4000 Ada 20Gb (4 DP)
• Nvidia RTX 5000 Ada 32Gb (4 DP)
• Nvidia RTX 6000 Ada 48Gb (4 DP)


• Nvidia L40s 48Gb (4 DP)
• Nvidia A100 40Gb (no video outputs)
• Nvidia A100 80Gb (no video outputs)
• Nvidia H100 94Gb NVL (no video outputs)
• Nvidia H200 141Gb NVL (no video outputs)

Display Support (all cards):
Maximum Digital Resolution: 7680x4320 @60Hz
Multi Monitor Support: 4

• 2 x USB 3.2 Gen 1
• 1 x VGA
• 1 x Power Button w/LED
• 1 x Location Button w/LED
• 1 x Message LED
• 1 x Q-Code/Port 80 LED
• 1 x Clear CMOS Switch
• 1 x Reset Switch
• 1 x M.2 LED

• 1 x COM port
• 2 x RJ45
• 1 x MLAN
• 1 x Power Button w/LED
• 1 x Location Button w/LED

• 2+2 2600W 80 PLUS Titanium redundant power supply
• Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz

NOTE: G7000 G3 comes with 4 x 2600W Redundant (2+2) power supplies. Total 4 power supplies (2 main + 2 backups).
That means that maximum output power is 5200 W (2 x 2600W) with 5200W (2 x 2600W) for backup power supplies.
If one or both power supplies will fail, the other backup power supply starts running to keep the computer powered up.
The switch between the power supplies is seamless, so as not to interrupt the normal use of the computer.

NOTE: The system power supply requires C19 type power cord

100-120V (standard US outlet):
If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need four (4) 20 A /120V outlets with a dedicated circuit.

Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power. Actual power consumption depends on your configuration (graphics card and CPU).

Power consumption example: G7000 with 8 x Quadro RTX 6000/8000/2080 Ti + 2 x Xeon 4116 CPUs = 2400-2600W (100% load for all the GPUs and CPUs).

Information for reference only. Consult your electrician for more details.

BizonOS and BizonOS Control Panel.
BizonOS includes a user-friendly, web-based control panel with everything one needs, all organized into one convenient location.

BizonOS features:

• Remote access from anywhere (SSH/VNC)
• Virtual machines
• GPU sharing
• Containers
• One-click software updates
• Jupyter notebooks
• GPU/System monitoring
• accounts, and permissions

• BIZON Z–Stack (Ubuntu 22.04 with preinstalled deep learning frameworks).
• Rocky Linux 9 (optional).
• Windows 11 Pro (optional).
• Microsoft Windows Server 2022 Standard (optional).


• Red Hat Enterprise Linux 7.x (x64) or later
• Red Hat Enterprise Linux 8.x (x64) or later
• Ubuntu 20.04 LTS (x64) or later
• Ubuntu 22.04 LTS (x64) or later
• VMware ESXi 7.0 U3
• VMware ESXi 8.0
• CentOS 7.0

• Operating temperature: 50° to 95° F (10° to 35° C)
• Operating humidity: 8%-80% (non-condensing)
• Non-operating temperature: -40° to 158° F (-40°C to 70°C)
• Non-operating humidity: 20%-90% (non-condensing)

8 x NVIDIA RTX 6000 Ada:

Idle: 71 dB
Max Load (stress test): 91 dB

Measured from 6 ft / 1.8 m distance.

Case

• Rackmountable; 4U; horizontal placement
• Height: 6.69 inches (17.45 cm)
• Width: 17.3 inches (44.0 cm)
• Depth: 34.6 inches (88.0 cm)

Shipping Package

• Height: 17.3 inches (44.4 cm)
• Width: 31.5 inches (80.0 cm)
• Length: 47.2 inches (120.0 cm)
• Weight: 135 lbs (61.2 kg) (shipped on pallet)

• Bizon G7000 G4
• 1 x Rail kit
• 4 x power cords (USA)
• User manual
• Benchmark report

bizon-g7000-g4

• Artificial Intelligence
• Big Data Analytics
• High-performance Computing
• Research Lab/National Lab
• Astrophysics, Business Intelligence

• Up to 8 x PCIe Gen4 GPGPU cards
• 3rd Gen. Intel Xeon Scalable Processors
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
• Supports Intel Optane Persistent Memory 200 series
• Dual ROM Architecture supported
• Intel C621A Express Chipset
• 2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)
• 1 x dedicated management port
• 12 x 3.5" or 2.5" SATA hot-swappable HDD/SSD bays
• 2 x SATA DOM supported
• 3 x 80 PLUS Platinum 2200W (240V) redundant PSU

Dual CPU server board.

• Intel Xeon Scalable Processors LGA 4189 (Socket P+).
• Intel C621A chipset.

• 3rd Generation Intel Xeon Scalable Processors
• Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
• Dual processors, 10nm
• Up to 40-core, 80 threads per processor
• cTDP up to 270W

• Up to 8192 GB DDR4 3200 MHz ECC Buffered
• 32 x DIMM slots
• DDR4 memory supported only
• 8-Channel memory per processor architecture
• RDIMM modules up to 128GB supported
• LRDIMM modules up to 128GB supported
• 3DS RDIMM/LRDIMM modules up to 256GB supported

NOTE: actual RAM clock speed depends on the CPU specifications and may vary.

• 2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)
• 1 x 10/100/1000 management LAN (Dedicated IPMI)
• 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; QSFP56) (optional)

• Integrated in Aspeed AST2600
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200@60Hz 32bpp, DDR4 SDRAM

Up to 8 Nvidia graphics cards with NVLink support.

Available options:

• Nvidia RTX A4000 16Gb (4 DP)
• Nvidia RTX A4500 20Gb (4 DP)
• Nvidia RTX A5000 24Gb (4 DP)
• Nvidia RTX A5500 24Gb (4 DP)
• Nvidia RTX A6000 48Gb (4 DP)


• Nvidia RTX 4000 Ada 20Gb (4 DP)
• Nvidia RTX 6000 Ada 48Gb (4 DP)


• Nvidia L40 48Gb (4 DP)
• Nvidia A100 80Gb (no video outputs)
• Nvidia H100 80Gb (no video outputs)


• Nvidia T1000 8Gb (4 DP)

Display Support (all cards):
Maximum Digital Resolution: 7680x4320 @60Hz
Multi Monitor Support: 4

N/A

• 12 x 3.5" or 2.5" SATA hot-swappable HDD/SSD bays
  NOTE: SATA devices supported only
• Onboard 2 x SATA DOM supported

N/A

Intel SATA RAID 0, 1, 10, 5

N/A

8 x PCIe x16 slots (Gen4 x16 bus) for GPUs

• 1 x TPM header
• 1 x VROC connector
• 2 x SATA DOM connectors
• 1 x Front VGA header
• 1 x Serial header

• 2 x USB 3.0
• 1 x VGA
• 2 x RJ45
• 1 x MLAN
• 1 x Power button with LED
• 1 x ID button with LED
• 1 x Reset button
• 1 x NMI button
• 1 x System status LED
• 1 x HDD access LED

N/A

• 12 x 3.5" or 2.5" SATA ports
• Bandwidth: SATA 6Gb/s per port

1 x TPM header with SPI interface

• 3 x 2200W redundant PSUs
• 80 PLUS Platinum

AC Input:

• 100-127V~/ 14A, 47-63Hz
• 200-240V~/ 12.6A, 47-63Hz

DC Output:

• Max 1200W/ 100-127V~
• +12.12V/ 95.6A
• +12Vsb/ 3.5A
• Max 2200W/ 200-240V
• +12.12V/ 178.1A
• +12Vsb/ 3.5A

NOTE: G7000 G2 comes with 3 x 2200W Redundant (2+1) power supplies. Total 3 power supplies (2 main + 1 backup).
That means that maximum output power is 4400 W (2 x 2200W) with 2200W (1 x 2200W) for backup power supplies.
If one or both power supplies will fail, the other backup power supply starts running to keep the computer powered up.
The switch between the power supplies is seamless, so as not to interrupt the normal use of the computer.

NOTE: The system power supply requires C19 type power cord

100-120V (standard US outlet):
If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need three (3) 20 A /120V outlets with a dedicated circuit.

Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power. Actual power consumption depends on your configuration (graphics card and CPU).

Power consumption example: G7000 with 8 x Quadro RTX 6000/8000/2080 Ti + 2 x Xeon 4116 CPUs = 2400-2600W (100% load for all the GPUs and CPUs).

Power supplies efficiency:
1200W @ 110-120V
2200W @ 220-240V

Information for reference only. Consult your electrician for more details.

BizonOS and BizonOS Control Panel.
BizonOS includes a user-friendly, web-based control panel with everything one needs, all organized into one convenient location.

BizonOS features:

• Remote access from anywhere (SSH/VNC)
• Virtual machines
• GPU sharing
• Containers
• One-click software updates
• Jupyter notebooks
• GPU/System monitoring
• accounts, and permissions

• Aspeed AST2600 management controller
• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

• BIZON Z–Stack (Ubuntu 20.04 with preinstalled deep learning frameworks).
• CentOS (with preinstalled deep learning frameworks) (optional).
• Windows 11 Pro (optional).
• Microsoft Windows Server 2019 Standard (optional).


• Windows Server 2016
• Windows Server 2019
• Red Hat Enterprise Linux 8.2 ( x64) or later
• Red Hat Enterprise Linux 8.3 ( x64) or later
• SUSE Linux Enterprise Server 12 SP5 ( x64) or later
• SUSE Linux Enterprise Server 15 SP2 ( x64) or later
• Ubuntu 20.04 LTS (x64) or later
• Ubuntu 20.04.1 LTS (x64) or later
• VMware ESXi 6.7 Update3 P03
• VMware ESXi 7.0 Update2
• Citrix Hypervisor 8.2.0

6 x 60x60x76mm (21,700rpm)

• Operating temperature: 50° to 95° F (10° to 35° C)
• Operating humidity: 8%-80% (non-condensing)
• Non-operating temperature: -40° to 140° F (-40°C to 60°C)
• Non-operating humidity: 20%-95% (non-condensing)

8 x NVIDIA RTX 6000 Ada:

Idle: 71 dB
Max Load (stress test): 91 dB

Measured from 6 ft / 1.8 m distance.

Case

• Rackmountable; 4U; horizontal placement
• Height: 6.9 inches (17.6 cm)
• Width: 17.6 inches (44.8 cm)
• Depth: 34.6 inches (88.0 cm)

Shipping Package

• Height: 24.0 inches (60.9 cm)
• Width: 23.8 inches (60.6 cm)
• Length: 44 inches (111.9 cm)
• Weight: 135 lbs (61.2 kg) (shipped on pallet)

• Bizon G7000 G2
• 1 x Rail kit
• 3 x power cords (USA)
• User manual
• Benchmark report

bizon-g7000-g2

NOTE: Alternative types of topologies are available. Contact sales for more details.
